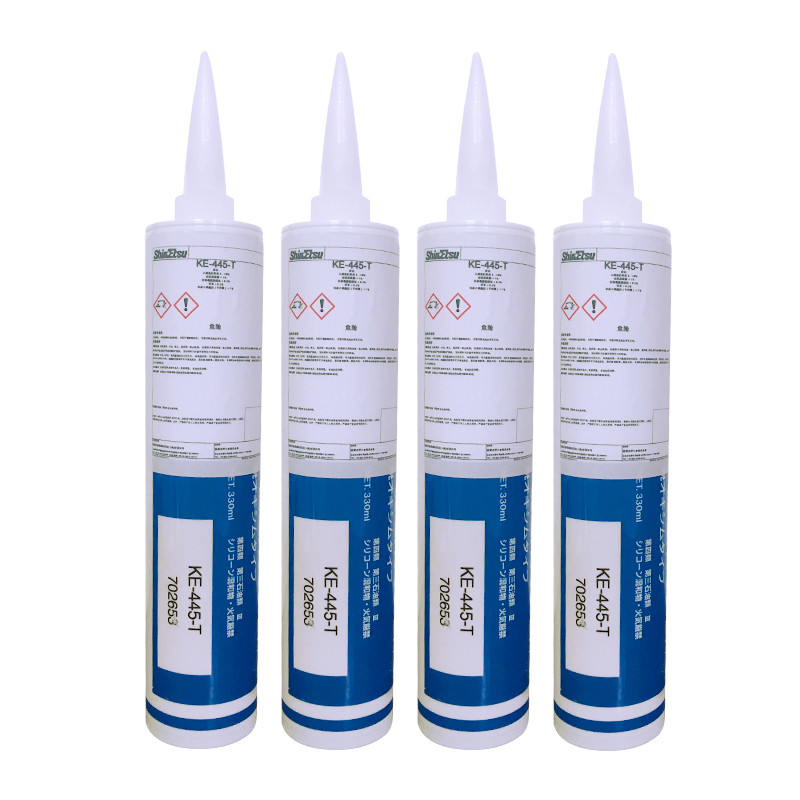

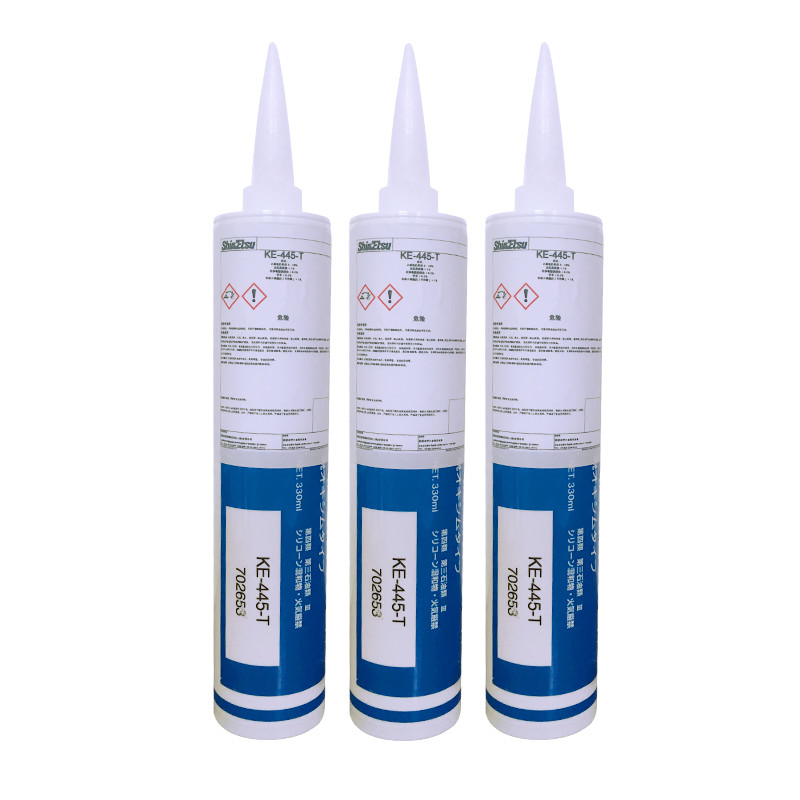

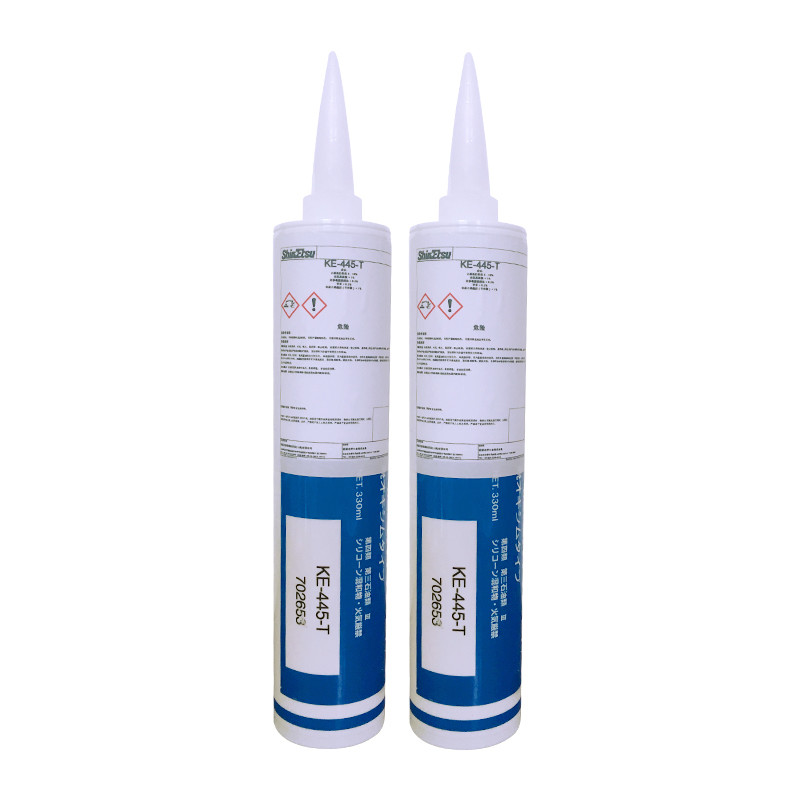

ShinEtsu KE-445 One-Component RTV Sealant - Elastic Solution for Electronics
Product Overview
Shin-Etsu KE-445 is a one-component, room-temperature vulcanizing (RTV), self-leveling silicone sealant that cures into a flexible and durable elastomer. Featuring a neutral cure system, it is non-corrosive, low-odor, and provides excellent adhesion to metals, plastics, glass, and ceramics without requiring a primer.
Key Features
One-component, easy to apply – No mixing required, suitable for automated dispensing or manual application.
● Room-temperature cure – Fully cures in 7 days at 23°C/50% RH, with a 20-minute tack-free time.
● Self-leveling – Ideal for smooth surface sealing, forming a uniform and bubble-free layer.
● Low hardness & high elasticity – 25 Shore A hardness with 200% elongation for stress relief.
● Excellent electrical properties – 5 TΩ·m volume resistivity & 25 kV/mm dielectric strength for electronics.
Typical Applications
Electronics – Moisture-proof sealing for PCBs, sensors, and PV junction boxes.
● Automotive – Waterproofing & vibration damping for battery packs, headlights, and ECUs.
● Industrial – Form-in-place gaskets (FIPG) for machinery and pipe flanges.
● Medical – Housing bonding & sealing, compliant with biocompatibility standards.
| Property |
Value |
| Type |
Adhesive/Sealant |
| Cure Type |
Condensation |
| Component |
One |
| Color |
Black, White, Translucent |
| Density @23°C (g/cm³) |
1.05 |
| Viscosity (cps) |
5,000 |
| Cure Conditions |
7 days @23°C/50% RH |
| Tack Free Time (min) |
20 |
| Shore A Hardness |
25 |
| Tensile Strength (MPa) |
2.0 |
| Elongation (%) |
200 |
| Shear Strength [Al/Al] (MPa) |
0.3 |
| Volume Resistivity (TΩ·m) |
5 |
| Dielectric Strength (kV/mm) |
25 |
| Dielectric Constant @50Hz |
2.8 |
| Dissipation Factor @50Hz |
5×10⁻³ |
| Thermal Conductivity (W/m·K) |
0.21 |
| Service Temp. Range (°C) |
-40 to +180 |
