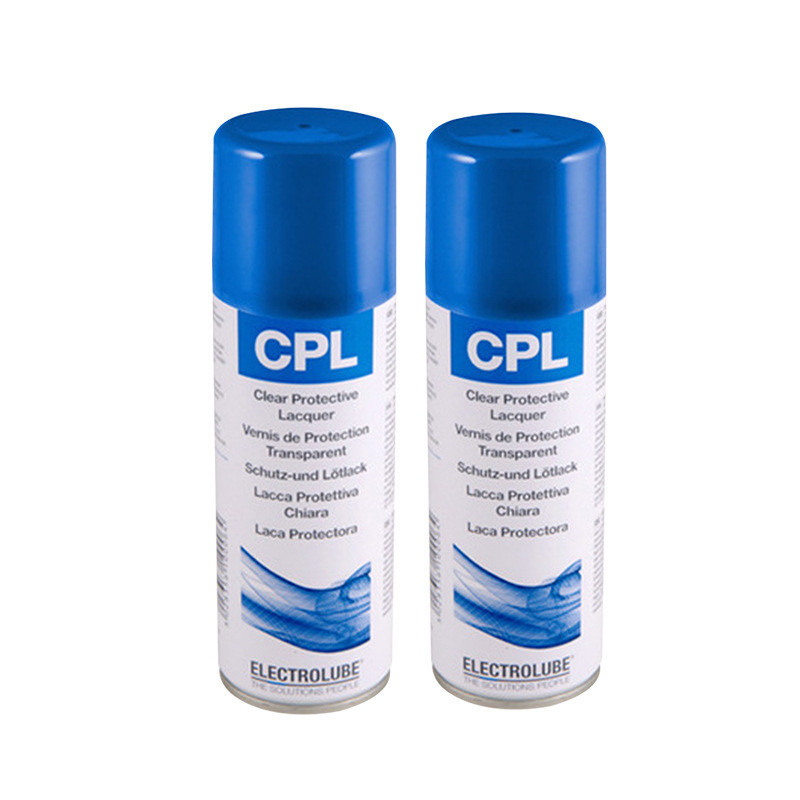

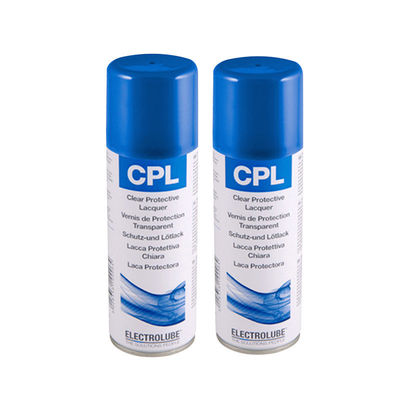

Electrolube CPL Conformal Coating for PCB Protection and Over-Coating Applications
Product Properties
| Parameter |
Value |
| Liquid Properties |
|
| Density @ 20°C (g/ml) |
0.86 (Bulk), 0.79 (Aerosol) |
| VOC Content |
79% |
| Flash Point |
12°C |
| Solids Content |
21% |
| Viscosity @ 20°C (mPa·s) |
25 |
| Touch Dry Time |
15-20 minutes |
| Dry Film Properties |
|
| Color |
Colorless (High Gloss) |
| Operating Temperature |
-50°C to +100°C |
| Flammability |
UL94 HB |
| Dielectric Strength |
45 kV/mm |
| Surface Insulation Resistance |
1×10¹² Ω |
| Coverage @ 25μm |
7m²/L (Bulk), 1.3m²/200ml (Aerosol) |
Product Introduction
CPL is a general-purpose clear protective lacquer designed for environmental protection of printed circuit boards (PCBs) and ferrous metals. Its high-gloss finish makes it ideal for over-coating applications where cosmetic appearance is critical. The cured coating is reworkable using Electrolube ULS solvent.
Enhanced Properties
- Electrical Integrity: Dielectric strength of 45 kV/mm and surface insulation resistance of 1×10¹² Ω guarantee safety in high-voltage environments.
- Environmental Resilience: Certified for thermal cycling per MIL-I-46058C, with stable performance from -50°C to +100°C.
- Reworkability: Cured coating can be fully removed using Electrolube ULS solvent without damaging substrates.
- Compliance: RoHS (2015/863/EU) compliant and free of UV tracers.
Application Scenarios
CPL is widely used in scenarios demanding both protection and aesthetics:
- Consumer Electronics: Moisture and salt-spray resistance for smartphone PCBs/wearable devices;
- Industrial Controls: Insulation of motor drive boards/sensor modules in dusty/chemical environments;
- Automotive Electronics: Vibration-resistant coating for ECU units/lighting circuits;
- Metal Protection: Anti-corrosion treatment for transformer cores/relay metal casings.
