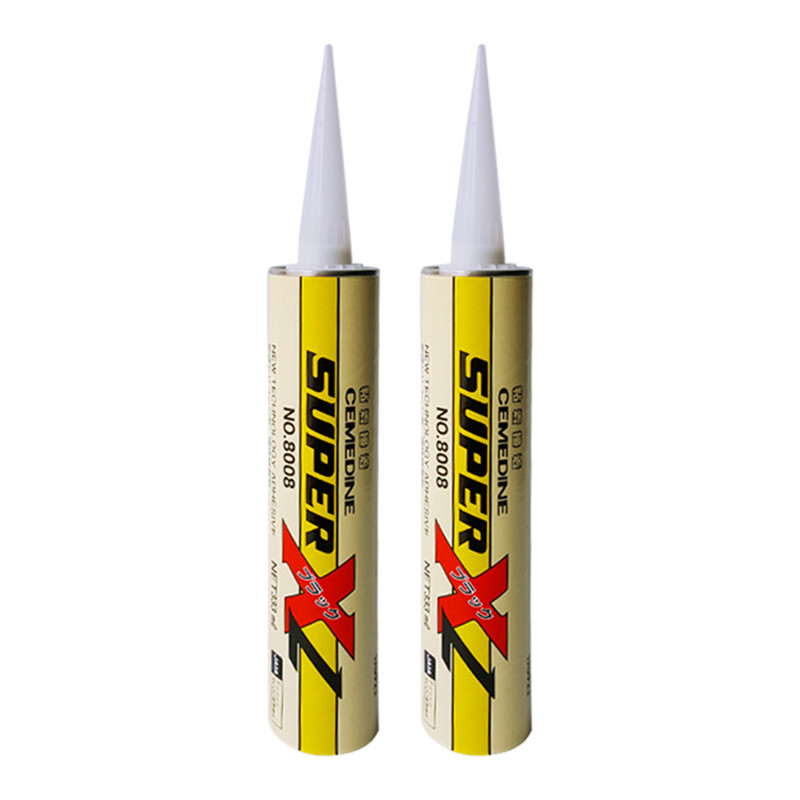

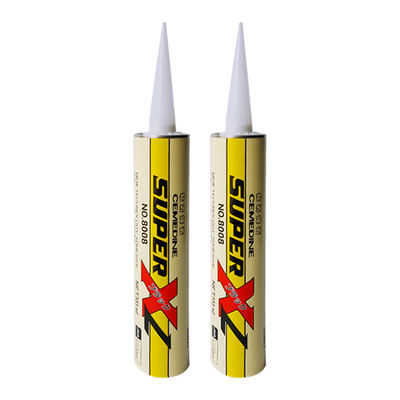

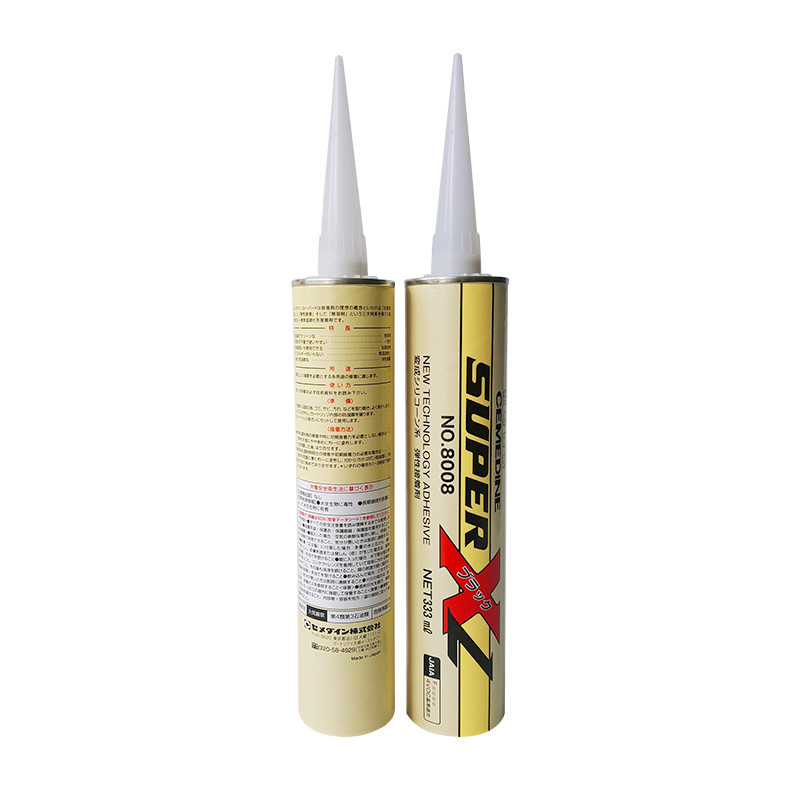

Cemedine 8008L Structural Adhesive for Metal/Plastic Bonding
Basic Properties
Cemedine 8008L is a two-part elastic structural adhesive with density 1.24-1.25 g/cm³, viscosity 22-24 Pa·s. Post-cure Shore A hardness 35-39, elongation at break 300-320%, engineered for structural bonding of metals and plastics.
Product Description
8008L achieves 2.04 mm displacement after 24h cure, with tensile strength 0.9-1.3 MPa. Elasticity absorbs vibration stress, bonding aluminum alloy (2.6 N/mm²), SPCC steel (2.8 N/mm²), and ABS plastic (1.3 N/mm²). Maintains >90% strength after 80°C aging.
Characteristics
| Property |
Value |
Test Condition |
| Viscosity |
24 Pa·s (A) / 22 Pa·s (B) |
23°C |
| Tensile Strength |
0.9-1.3 MPa |
— |
| Elongation at Break |
300-320% |
— |
| Shore A Hardness |
39 (A) / 35 (B) |
Cured |
| Displacement (24h) |
2.04 mm (A) / 1.93 mm (B) |
— |
| Bond Strength to Aluminum |
2.6 N/mm² |
Lap shear |
| Bond Strength to SPCC Steel |
2.8 N/mm² |
Lap shear |
Application Scenarios
Auto Door Panel: Bonds aluminum frame to PP liner. 320% elasticity absorbs impact, implemented in Toyota Camry production.
Drone Motor Mount: Adheres carbon fiber to metal base. 2.8 N/mm² shear strength resists vibration, used in DJI Mavic drones.
Robot Joint Reinforcement: Fills harmonic drive gaps. 39 Shore A hardness balances rigidity/flexibility, validated by FANUC.
Medical Enclosure Sealing: Bonds ABS panels to metal housings. >90% strength retention after 80°C/85% RH aging, meets IEC 60601.
