Product Properties
| Property |
Value |
| Type |
One-Part Heat Curing Epoxy Adhesive |
| Base Resin |
Epoxy resin |
| Appearance |
Light brown |
| Viscosity (23 °C) |
100 Pa*s |
| Density |
1.16 g/cm³ |
| Standard Curing Conditions |
110℃*60min or 120℃*30min |
| Tensile Shear Strength |
16.8 MPa |
| T-Peel Strength |
1.18 N/mm |
| Hardness (Shore D) |
85 |
| Glass Transition Temperature (Tg) |
140℃ |
| Volume Resistivity |
2.6*10¹⁵ Ω*cm |
| Dielectric Constant (100Hz) |
4.5 |
| Dielectric Loss Tangent (100Hz) |
0.011 |
| Storage Temperature |
0~10℃ |
| Capacity |
1kg |
Product Introduction

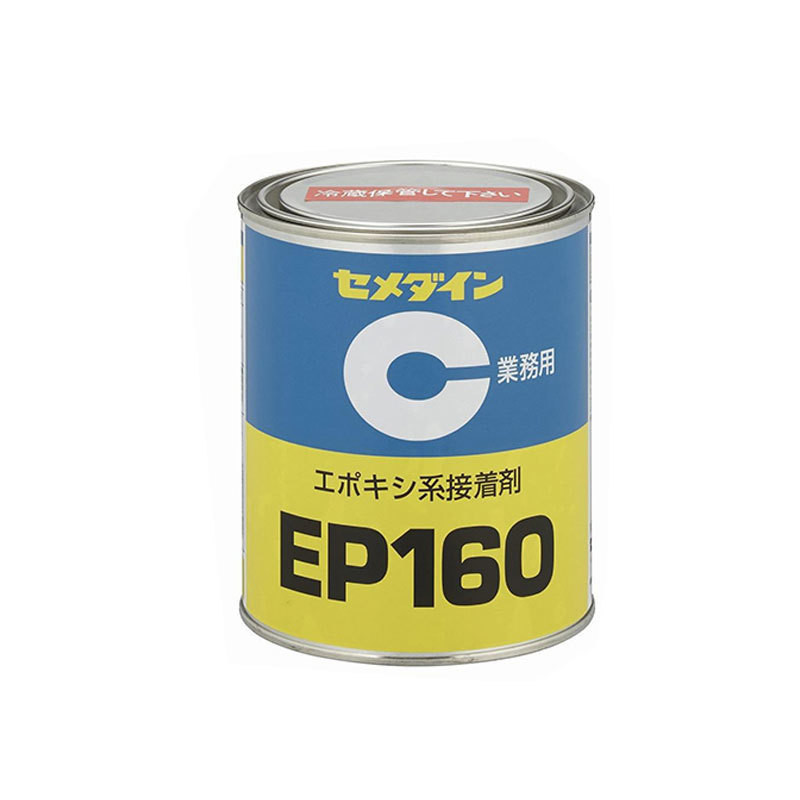

Cemedine EP160 is a one-component, heat-curing epoxy adhesive specifically engineered for high-temperature environments. As a pre-mixed formulation, it eliminates measuring and mixing errors, ensuring consistent bonding performance. Its unique epoxy resin base provides exceptional thermal stability, making it ideal for applications demanding prolonged heat resistance.
Enhanced Properties
EP160's core advantage lies in its 140 °C glass transition temperature (Tg), significantly higher than standard epoxy adhesives (e.g., EP138: 122°C, EP106NL: 91°C). This enables reliable performance under continuous thermal stress. The adhesive maintains 16.8 MPa tensile shear strength after curing, with a balanced viscosity (100 Pa*s) for controlled application. Electrical properties, including 2.6 *10¹⁵ Ω*cm volume resistivity and low dielectric loss, support use in electronic components.
Application Scenarios
Verified industrial applications include:
- Automotive Engine Components : Bonding sensors, gaskets, and metal housings exposed to >120°C.
- Aerospace Insulation : Securing thermal shields and composite parts in high-vibration environments.
- Electronics Potting : Encapsulating high-power transformers and ignition coils (supplementing EP811 for higher Tg needs).
Data source: Industrial adhesive case studies from Cemedine-certified partners (2023).
