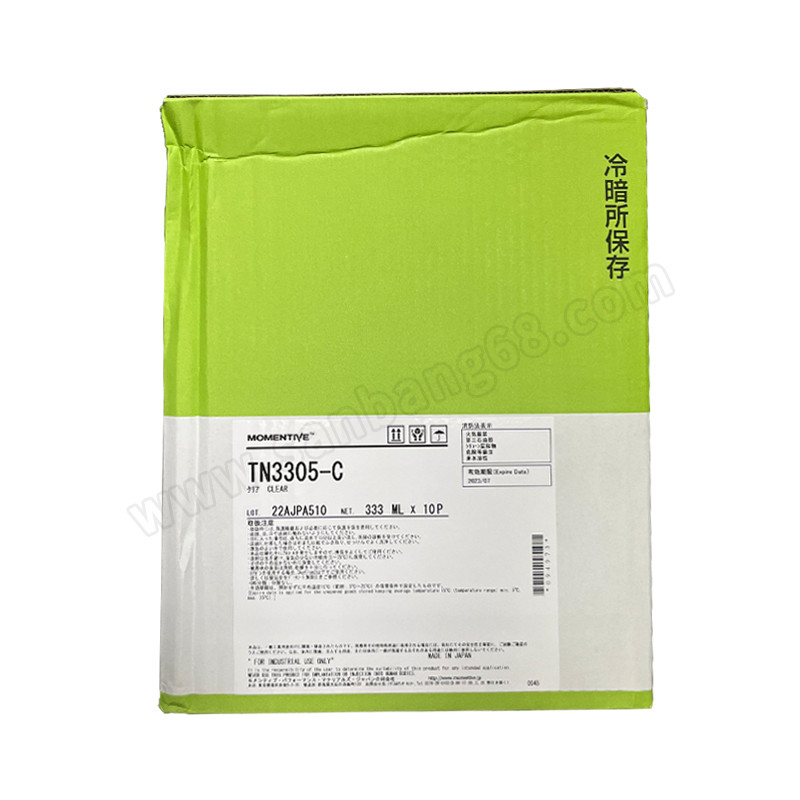

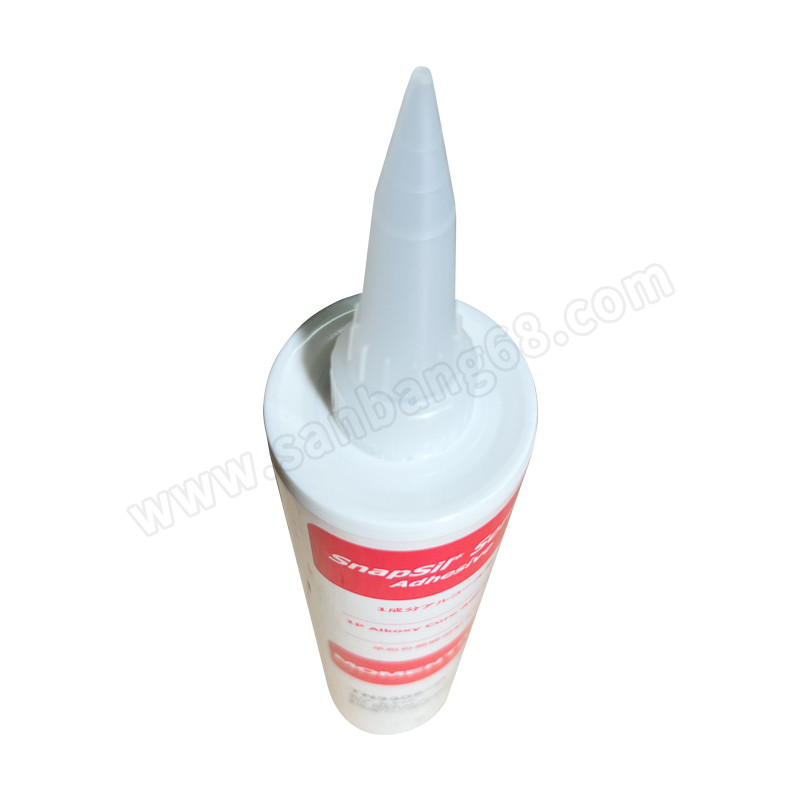

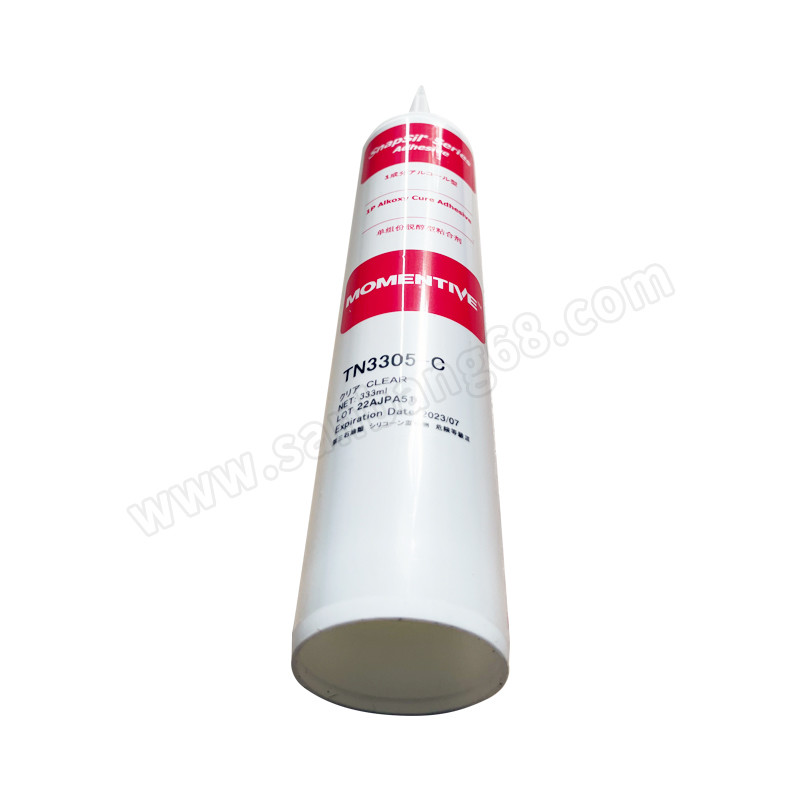

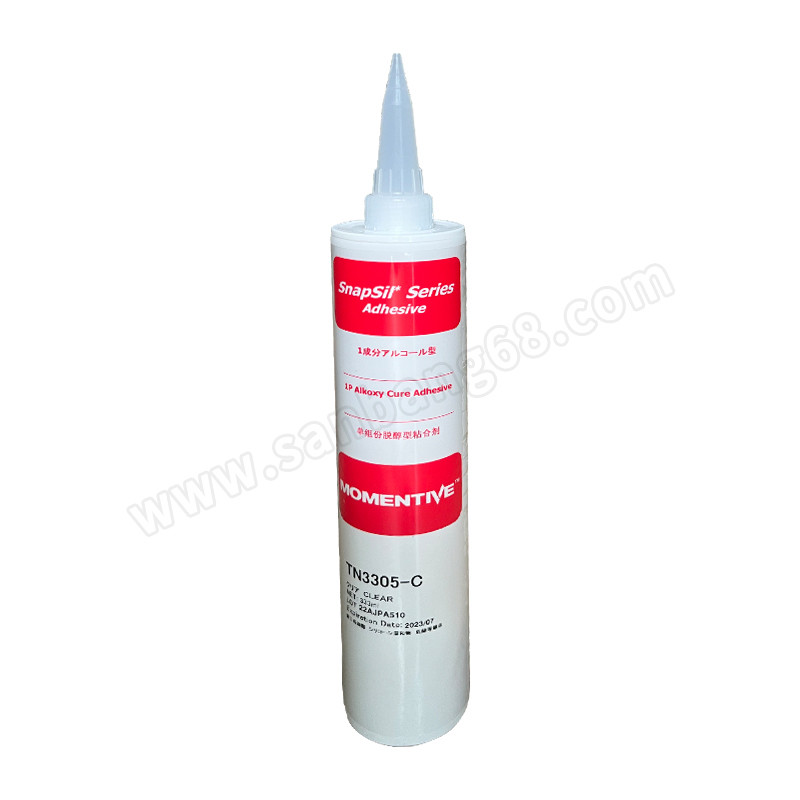

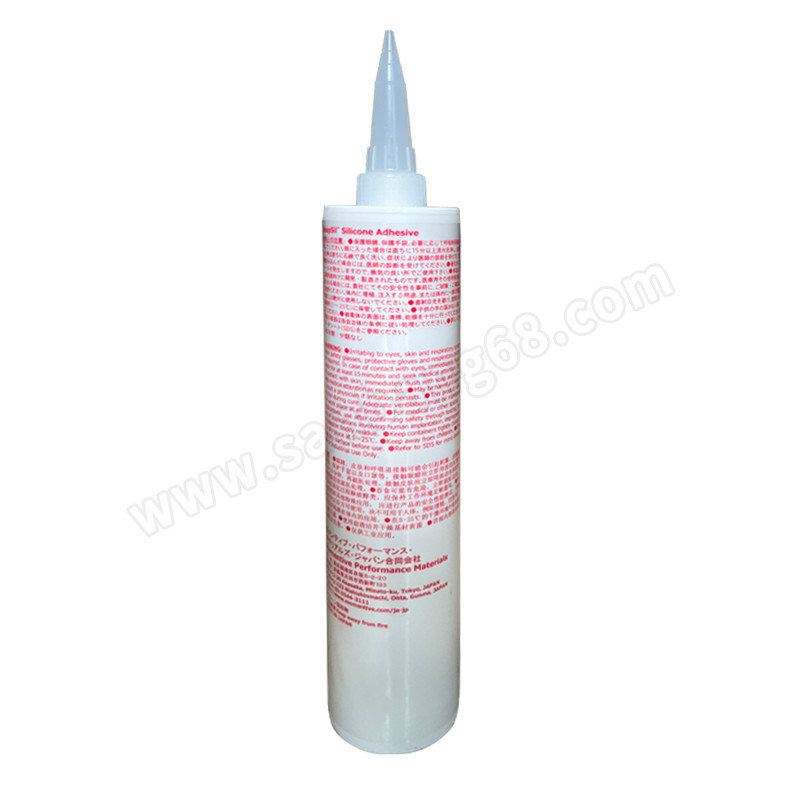

Momentive SnapSil TN3305-C Electronics Insulating Adhesive Sealant
Product Properties
| Property |
Unit |
Value |
| Uncured Properties |
|
|
| Appearance |
– |
Flowable, clear/white/black |
| Viscosity (23°C) |
Pa·s |
47 |
| Tack-free Time (23°C) |
min |
9 |
Cured Properties
(3 days, 23°C, 50% RH) |
|
|
| Density (23°C) |
g/cm³ |
1.04 |
| Hardness (Type A) |
– |
14 |
| Tensile Strength |
MPa |
1.5 |
| Elongation |
% |
400 |
| Adhesion Strength |
MPa |
1.0 |
| Volatile Siloxane (D3-D10) |
wt% |
0.01 |
Product Introduction
Momentive SnapSil TN3305-C is a one-component, low-volatility silicone adhesive sealant that cures at room temperature upon exposure to atmospheric moisture. It delivers primerless adhesion to diverse substrates (metals, glass, plastics), with fast tack-free time (9 min at 23°C) and low alcohol emission during cure. Certified flame retardant (UL94 HB, File E56745) and non-corrosive to most metals.
Enhanced Properties
- Electrical Insulation: Volume resistivity 2.0×10¹⁵ Ω·cm, dielectric strength 26 kV/mm.
- Low Ionic Impurity: Na⁺/K⁺/Cl⁻ content <2 ppm (in-house test).
- Stable Dielectrics: Dielectric constant 2.7 (60Hz), dissipation factor 0.002 (60Hz).
- Environmental Compliance: Ultra-low volatile siloxane (0.01 wt% D3-D10).
Application Scenarios
- Electronics Encapsulation: PCB moisture barrier, sensor potting (Mouser Electronics).
- EV Component Sealing: Battery junction boxes, charging port seals (Momentive industrial solutions portfolio).
- Communications Equipment: Waterproof gaskets for 5G base stations (IHS Markit ET-32 report).
- General Industrial Bonding: Adhesion to aluminum/steel/engineering plastics (documented in TDS).
