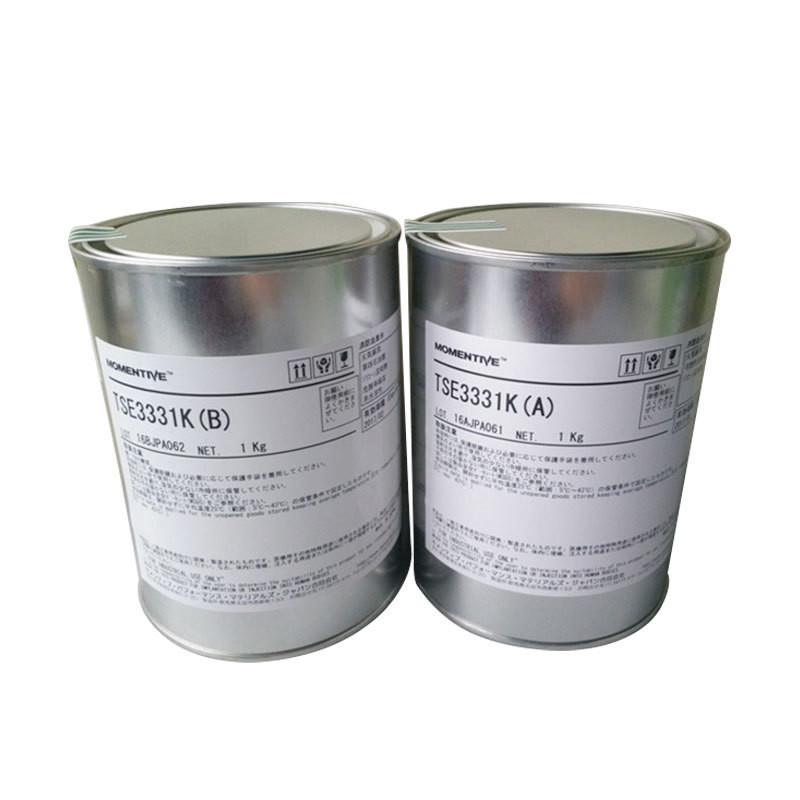

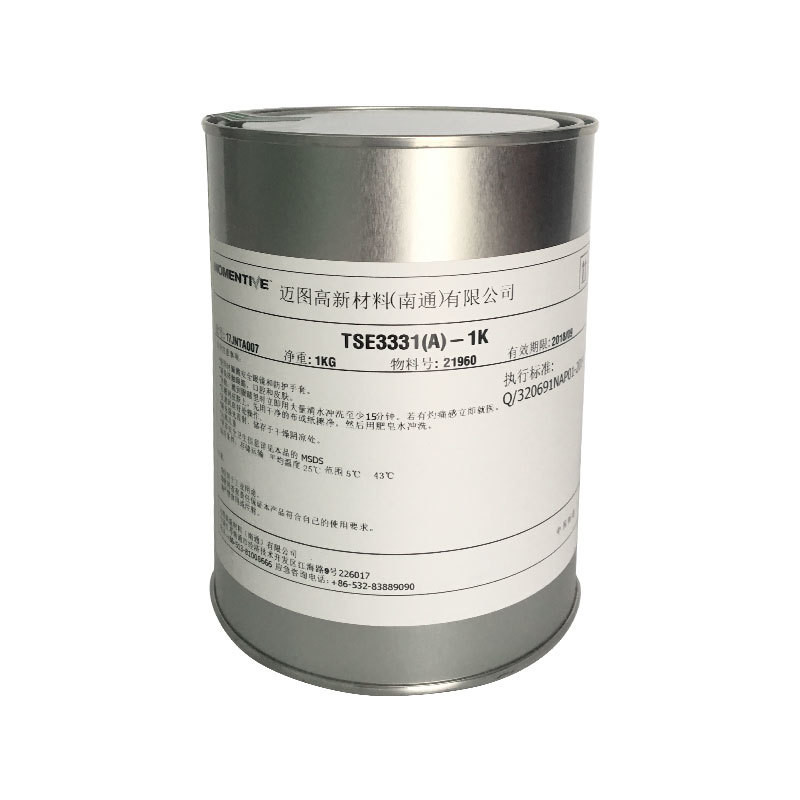

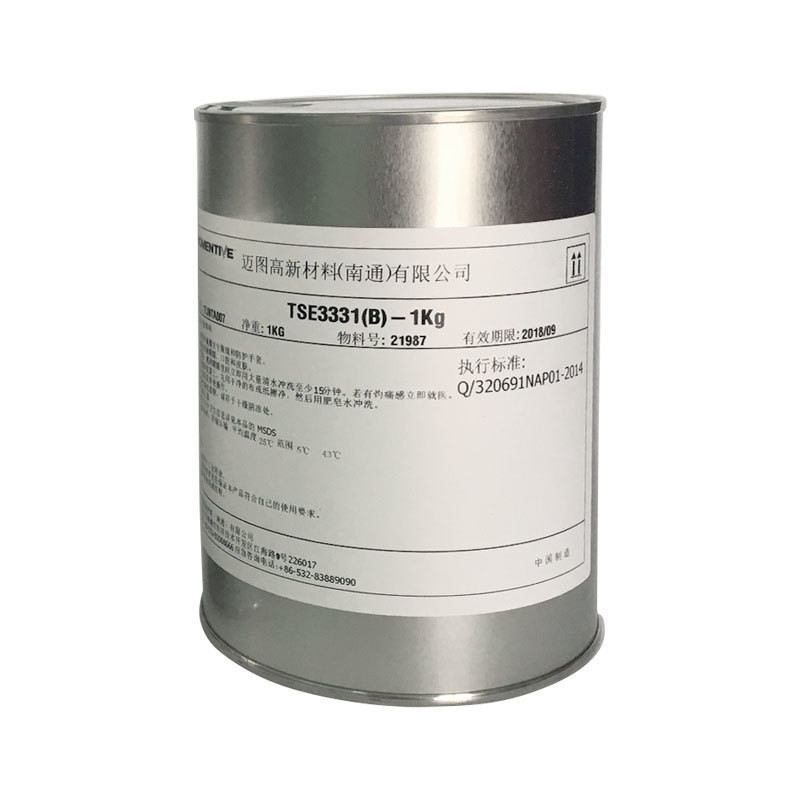

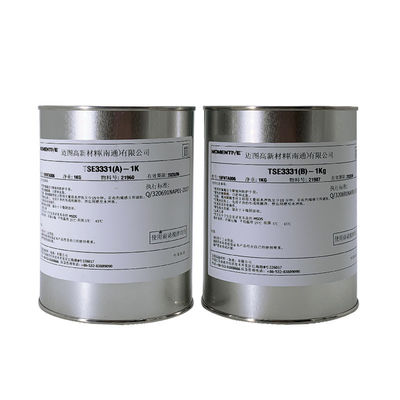

Momentive TSE3331K Silicone Rubber for Flame-Retardant Potting in High-Temperature Electronics
Product Properties
| Property |
Unit |
Value |
| Uncured Properties |
|
(A) |
(B) |
| Appearance |
|
Black |
Black |
| Viscosity(23°℃) |
Pa · s {P} |
4.1 {41} |
3.5 {35} |
| Mix ratio by weight |
|
1:1 |
| Viscosity after mixing(23℃) |
Pa · s{P} |
3.5 {35} |
| Pot Life(23℃) |
h |
8 |
| Cured Properties(1h at 120°℃) |
| Appearance |
|
Elastic rubber,Black |
| Density(23℃) |
g/cm³ |
1.51 |
| Hardness (Type A) |
|
60 |
| Tensile Strength |
MPa{kgf/cm²} |
2.9{30} |
| Elongation |
% |
50 |
| Adhesive Strength(1) |
MPa{kgf/cm²} |
1.3{13} |
| Thermal Conductivity²) |
W/(m ·K)
{cal/(cm · s · ℃)} |
0.63{1.50×10³} |
| Linear Expansion(2) |
1/K |
1.7×104 |
Water adsorption(³)
% |
25℃,24h |
0.03 |
| 25℃,168h |
0.03 |
| Property |
Unit |
Value |
| Volume Resistivity |
MΩ ·m{Ω ·ccm} |
2.0×106{2.0×1014} |
| Dielectric Strength |
kV/mm |
26 |
| Dielectric Constant |
60Hz |
3.4 |
| 1Mz |
3.3 |
| Dissipation Factor |
60Hz |
0.017 |
| 1Mz |
0.003 |
| Arc Resistance(4) |
S |
340 |
Product Introduction
SILTRUST TSE3331 is a two-component, heat curable silicone rubber for electic and elecronic poting. It cures with heat to form elastic, fame retardant rubberand adheres to various types of materials without the need for primers, such as metals, plastics, glass and ceramics.
Advanced Properties
Convenient 1:1 mix ratio by weight
Excellent thermal conductivity
Low viscosity allows for excellent flowability
Excellent adhesive properties: primerless adhesion to many types of substratesFlame retardant: UL94V-0 recognized (File No: E56745)
Resistance to temperature extremes
Non-corrosive to most metals
Application Scenarios
- High-voltage component potting: e.g., power modules and transformers, leveraging its dielectric strength (26 kV/mm) and UL 94 V-0 rating
- PCB moisture-proof coating: Low viscosity ensures complete coverage against humidity
- Automotive electronics: Withstands -50~200°C for engine compartment components
- Consumer electronics sealing: Biocompatibility suits seals for wearables
