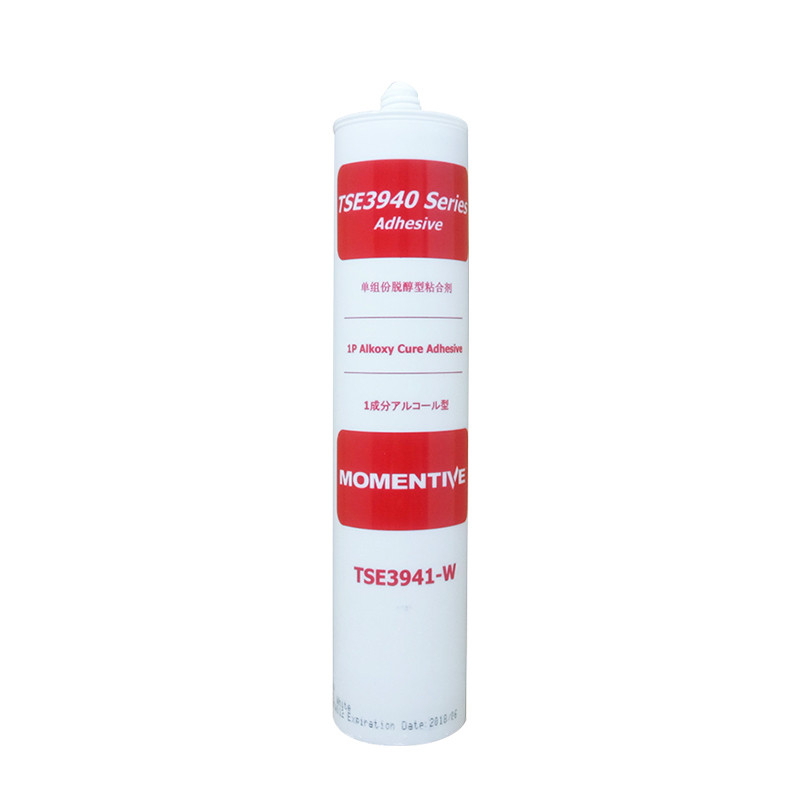

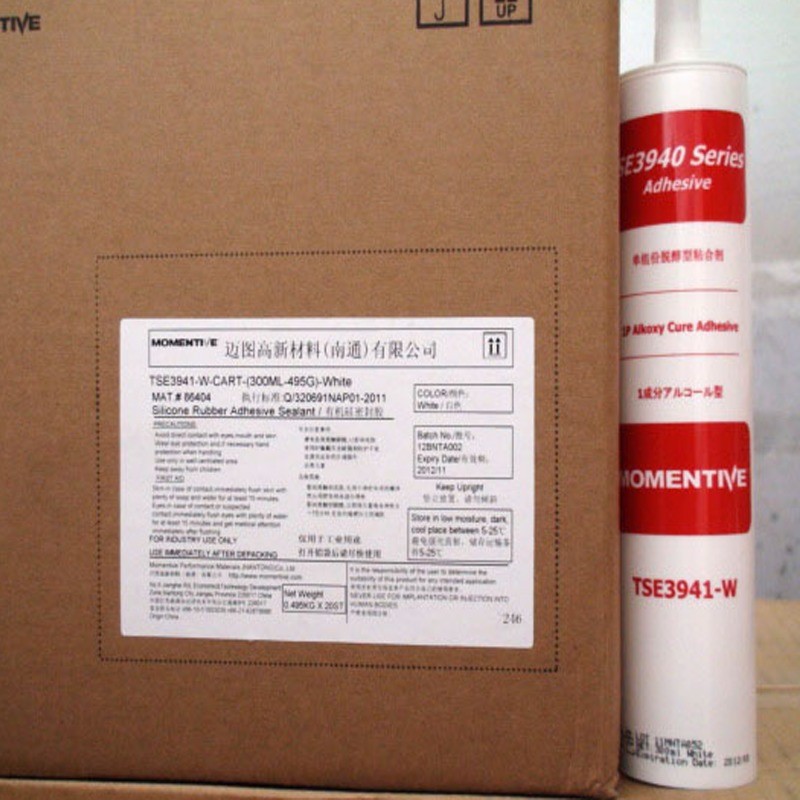

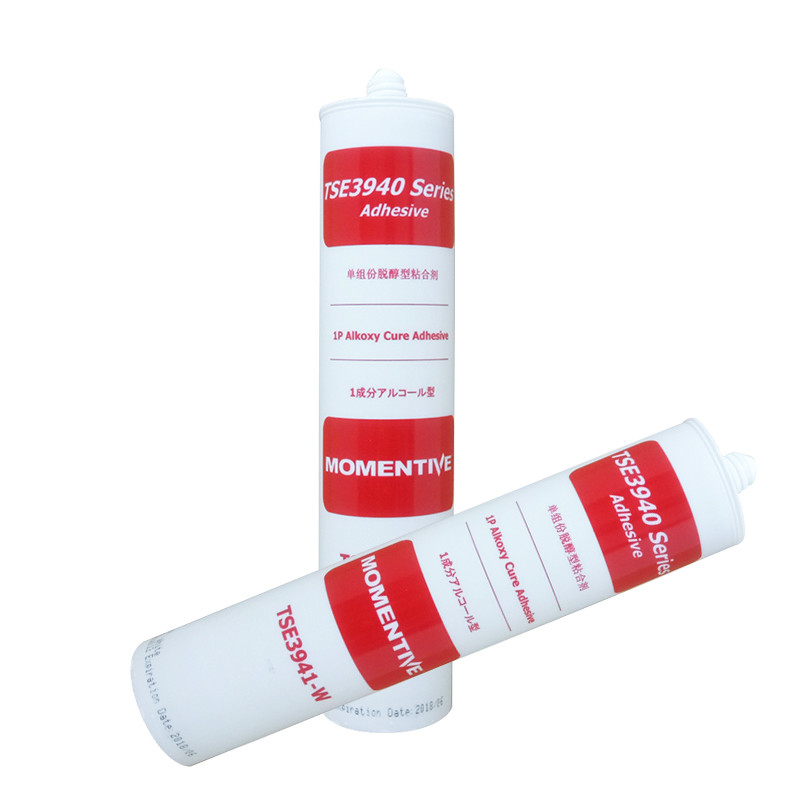

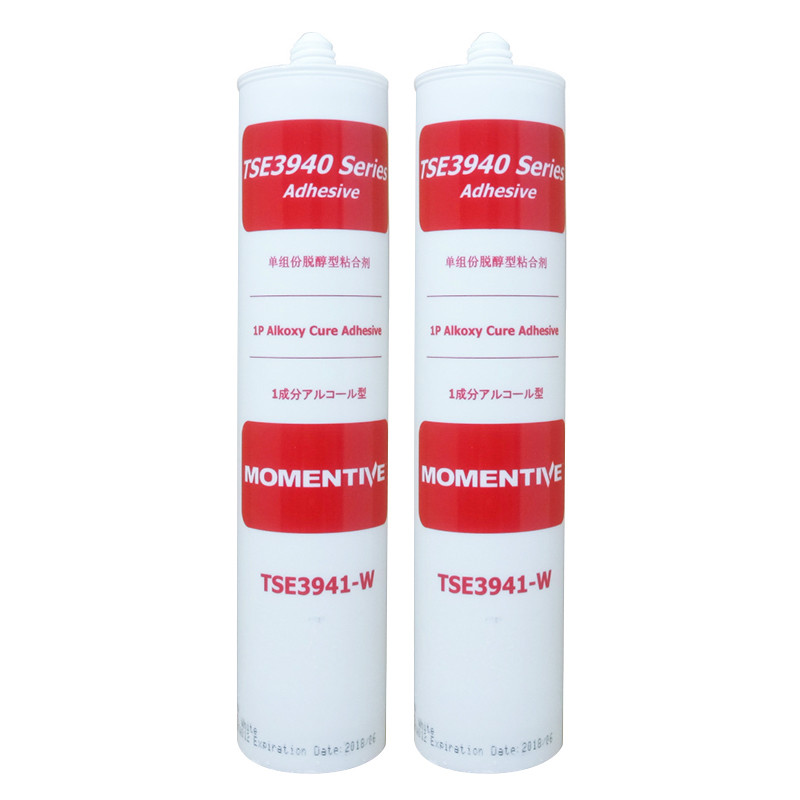

Momentive TSE3941-W Flame-Retardant Electronic Adhesive Sealant
Basic Properties
| PROPERTY |
VALUE |
CONDITION |
| Uncured Properties |
|
|
| Appearance |
Non-flowable paste, white |
- |
| Tack-free time |
5 min |
23°C |
| Cured Properties |
|
3 days @ 23°C, 50% RH |
| Density |
1.71 g/cm³ |
- |
| Hardness (Type A) |
76 |
JIS K 6249 |
| Tensile Strength |
4.2 MPa {43 kgf/cm²} |
- |
| Elongation |
80% |
- |
| Adhesion Strength |
2.0 MPa {20 kgf/cm²} |
Aluminum lap shear, 7 days |
| Volatile Siloxane (D3-D10) |
0.005 wt% |
In-house test method |
| Thermal Conductivity |
0.7 W/(m·K) {1.7×10⁻³ cal/(cm·s·°C)} |
- |
Product Introduction
Momentive TSE3941-W is a one-component, non-corrosive, low volatile silicone adhesive sealant that cures with atmospheric moisture to form an elastic, flame retardant silicone rubber. Key features include fast tack-free time (5 min @23°C), UL94V-0 certification (File E56745), non-corrosivity to metals, and low odor alcohol vapor release during cure.
Advanced Technical Properties
Flame Retardancy & Electrical Properties: UL94V-0 certified for high-voltage applications. Stable electrical performance with initial volume resistivity of 2.3×10¹⁵ Ω·cm, maintained at 6.3×10¹⁵ Ω·cm after 1000h@150°C and 2.1×10¹⁵ Ω·cm after 500h@60°C/90%RH.
Adhesion & Heat Resistance: Excellent adhesion to aluminum, copper, epoxy resin (see table below), but poor to polyethylene/PTFE. After 500h@150°C, copper adhesion strength retains 1.6 MPa (initial: 2.1 MPa).
| Substrate |
Adhesion (No Primer) |
| Aluminum |
O (Cohesive failure) |
| Copper |
O |
| Epoxy resin |
O |
| Polyethylene |
X (Adhesive failure) |
| PTFE |
X |
Application Scenarios
High-voltage parts: Flame retardant bonding for power modules and transformers (e.g., telecom base station power units).
Waterproof sealing: Moisture-proof sealing for communication device housings and sensor ports (e.g., 5G antenna sealing).
Industrial flame retardancy: Fireproof encapsulation for EV battery pack high-voltage wire connections (industry-verified same model application).
High-temperature sealing: Motor coil fixation and insulation protection in 150°C environments.
