Home /Products/Silicone Adhesive/DOWSIL™ CN-8880 Non-Curing Thermal Grease with 1.0W/m·K Thermal Conductivity and High Volume Resistivity for Heat Sink Gap Filling

DOWSIL™ CN-8880 Non-Curing Thermal Grease with 1.0W/m·K Thermal Conductivity and High Volume Resistivity for Heat Sink Gap Filling

1
MOQ
113
Price
DOWSIL™ CN-8880 Non-Curing Thermal Grease with 1.0W/m·K Thermal Conductivity and High Volume Resistivity for Heat Sink Gap Filling
Features Gallery Product Description Chat Now
Features
Specifications
Brand: DOWSIL
Model: CN-8880
Specifications: 1kg
Category: Thermal Grease
Specific Gravity: 2.16
Thermal Conductivity: 1.0W/m·K
Viscosity: 836,000cP
Highlight:

1.0W/m·K Thermal Conductivity Thermal Grease

,

Non-Curing Thermally Conductive Silicone Paste

,

High Volume Resistivity Heat Sink Gap Filler
Basic Infomation
Place of Origin: USA
Brand Name: DOWSIL
Certification: TDS,SDS,ROHS,COA
Model Number: CN-8880
Payment & Shipping Terms
Packaging Details: 1kg
Delivery Time: 3-5
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 10000
Product Description

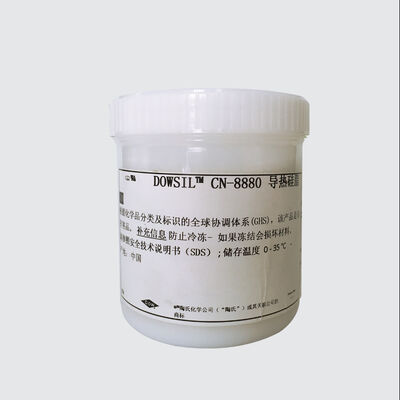

DOWSIL™ CN-8880 Non-Curing Thermal Grease for Heat Sink Gap Filling
DOWSIL™ CN-8880 is a non-curing, thermally conductive silicone paste engineered for heat sink gap filling applications. This specialized material maintains stable performance at high temperatures while providing excellent thermal transfer and electrical insulation properties.
Product Overview

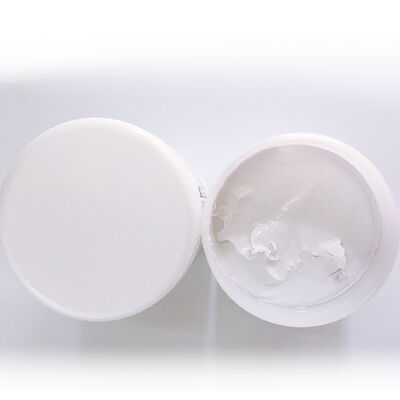

This grease-like silicone material is heavily filled with thermally conductive metal oxides and designed to maintain consistency and stable performance at temperatures up to 177°C (350°F). It effectively transfers heat from electronic components like transistors and diodes to heat sinks or chassis, enhancing heat dissipation and increasing overall device efficiency and reliability.
Key Technical Properties
Property Unit Value
Thermal Conductivity (Hot Disk) W/m·K 1.0
Viscosity cP 836,000
Specific Gravity (Uncured) - 2.16
Oil Bleed (150°C/24 hrs) % <0.01
Volume Resistivity (JIS K 6249) Ω·cm 2.89 E+15
Dielectric Strength (JIS K 6249) kV/mm 9
Flow Rate - Slump cm 0.4
Volatility % 0.14
Shelf Life at 25°C months 12
Extrusion Rate g/min 695
Performance Characteristics
CN-8880 exhibits high viscosity (836,000 cP) which contributes to minimal flow (slump of 0.4 cm) and excellent stability after application. It demonstrates low volatility (0.14%) and maintains its dielectric strength of 9 kV/mm even under demanding conditions. The combination of low oil bleed and high-temperature stability makes it suitable for applications requiring long-term reliability without drying out or migrating.
Application Areas
DOWSIL™ CN-8880 is specifically designed for gap-filling between heat sinks and various heat sources such as transistors, diodes, and rectifier bases. Information from Dow Corning indicates its suitability in power supplies, automotive electronics, and power conversion modules where stable thermal performance and electrical insulation are critical over a wide temperature range.
DOWSIL™ CN-8880 Non-Curing Thermal Grease with 1.0W/m·K Thermal Conductivity and High Volume Resistivity for Heat Sink Gap Filling 0
