Shin-Etsu G-776 Silicone Oil Compound

Shin-Etsu G-776 Silicone Oil Compound

1. Product Overview

Shin-Etsu G-776 is a silicone oil compound that combines high reliability with excellent thermal conductivity and electrical properties. It is specifically engineered as a thermal interface material for applications requiring long-lasting performance under demanding conditions.

Compared to general-purpose silicone oil compounds, G-776 offers superior resistance against pump-out, creep, and oil separation, making it ideal for applications where sustained reliability is critical.

2. Features & Advantages

High Thermal Conductivity

With a thermal conductivity of 2.9 W/m·K, G-776 efficiently transfers heat away from critical components, ensuring optimal operating temperatures and extended device lifespan.

Excellent Electrical Insulation

Dielectric breakdown strength of 3.10 kV (at 0.25mm thickness) provides reliable electrical insulation for sensitive electronic components.

Superior Resistance to Pump-Out, Creep & Oil Separation

G-776 outperforms general-purpose products in resistance against pump-out, creep, and oil separation, ensuring consistent performance over extended service life.

Optimized Viscosity for Easy Application

Diluted with isoparaffin solvent, G-776 achieves low viscosity (60 Pa·s) for easy application while maintaining low oil bleed characteristics.

Wide Operating Temperature Range

Rated for use from -40°C to +200°C, G-776 performs reliably across extreme temperature environments.

Low Volatile Content

Low molecular-weight siloxane content (ΣD3-D10 ≤ 100 ppm) ensures minimal outgassing and maintains thermal performance over time.

3. Technical Parameters

4. Applications

Shin-Etsu G-776 is designed as a thermal interface material for applications that demand high reliability. Typical applications include:

IGBT Modules

Power electronics and motor drives requiring efficient heat dissipation

CPUs (Central Processing Units)

High-performance computing and data center applications

MPUs (Microprocessor Units)

Industrial control systems and embedded applications

Power Semiconductors

Thermal management in high-power electronic devices

LED Heat Sinks

Thermal interface in high-brightness LED lighting

5. Handling Precautions

1. Wear gloves and other protective gear when using this product.
2. If the product contacts skin, wipe off with a dry cloth and wash thoroughly with soap and water. In case of eye contact, flush immediately with plenty of running water and consult a physician.
3. Ensure adequate ventilation when handling, especially during heating. Avoid inhaling vapors.
4. Do not mix with other oils or greases.
5. Keep out of reach of children.
6. After spillage, the floor may become slippery — wipe up with a cloth, spread absorbent material, then wipe clean.
7. Always refer to the Safety Data Sheet (SDS) before use.

6. Frequently Asked Questions

Q1: What is Shin-Etsu G-776?

A1: Shin-Etsu G-776 is a silicone oil compound designed as a high-reliability thermal interface material. It offers excellent thermal conductivity (2.9 W/m·K), superior electrical insulation, and outstanding resistance to pump-out, creep, and oil separation.

Q2: What is the operating temperature range of G-776?

A2: G-776 can be used in temperatures ranging from -40°C to +200°C, making it suitable for a wide variety of industrial and electronic applications.

Q3: Why does oil separation occur after storage?

A3: Oil separation after prolonged storage is normal and does not indicate a product defect. Simply stir the product thoroughly before use to restore its uniform consistency.

Q4: Can G-776 be used for CPU and GPU thermal management?

A4: Yes, G-776 is specifically designed as a thermal interface material for CPUs, MPUs, and other high-reliability electronic components. Its high thermal conductivity and electrical insulation make it ideal for these applications.

Q5: What packaging sizes are available?

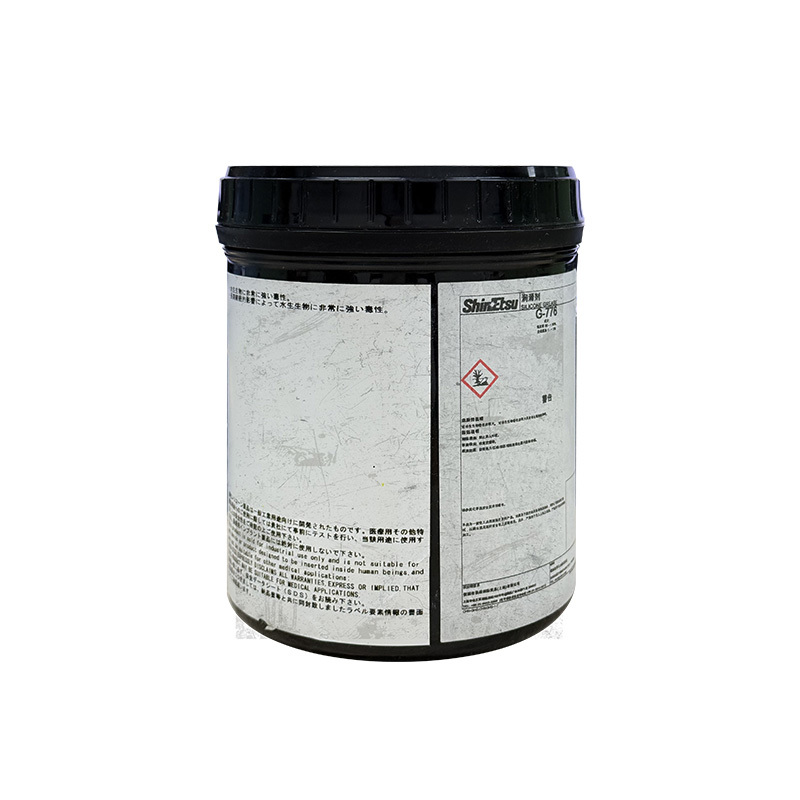

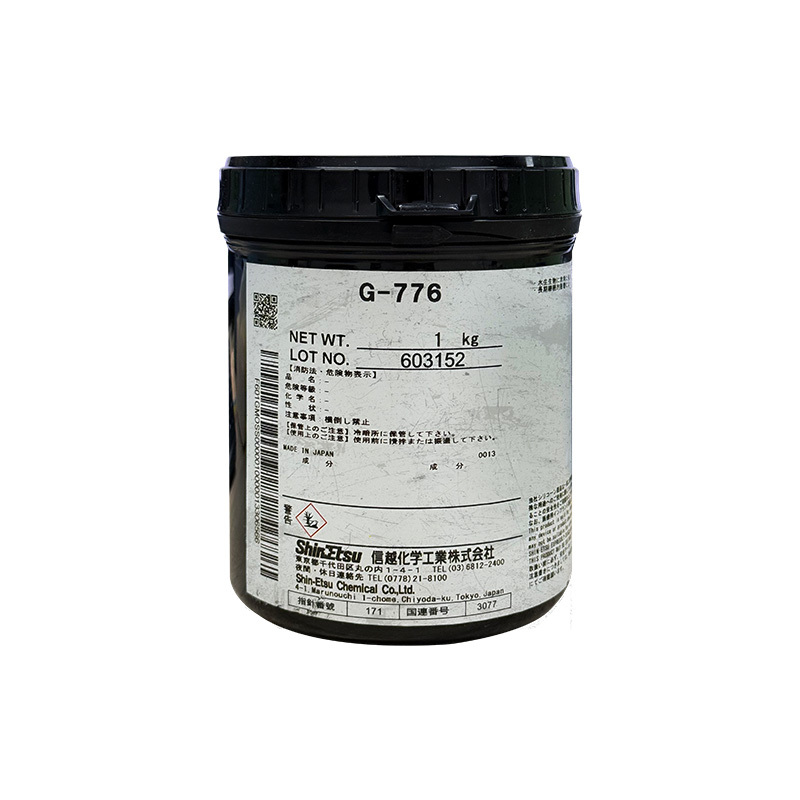

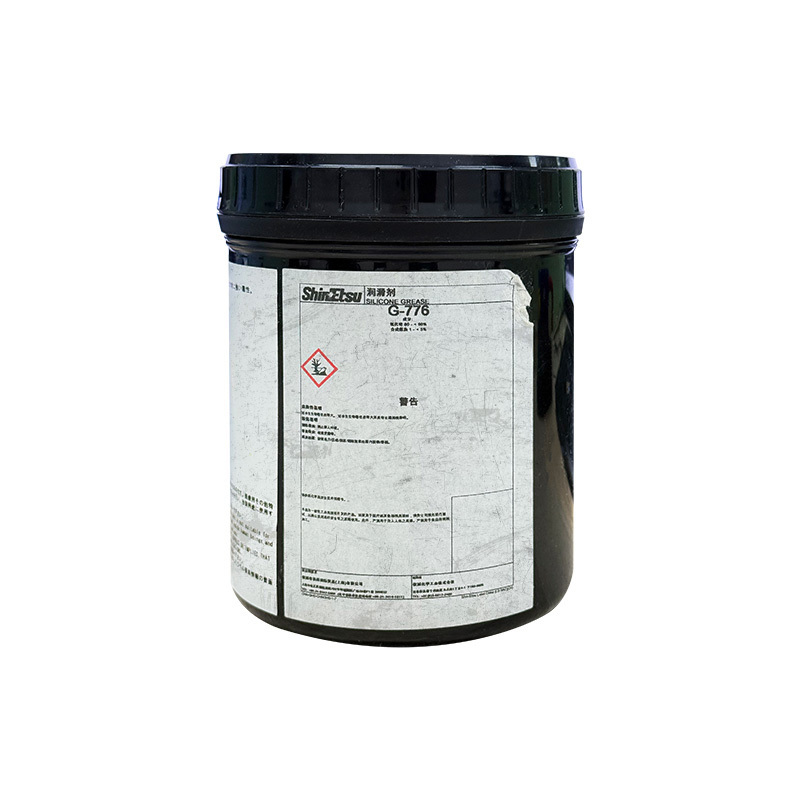

A5: G-776 is available in 100g plastic bottles and 1kg plastic containers.

Q6: Is G-776 suitable for medical implant applications?

A6: No. The silicone products described in this document are designed, manufactured, and developed solely for general industrial use. They are not designed for, intended for use as, or suitable for medical, surgical, or other particular purposes.

Q7: How should I handle G-776 if it spills on the floor?

A7: Wipe up the product with a cloth, then spread sand or other absorbent material on the area, and wipe again to remove all traces. The spilled area may become slippery, so exercise caution.
