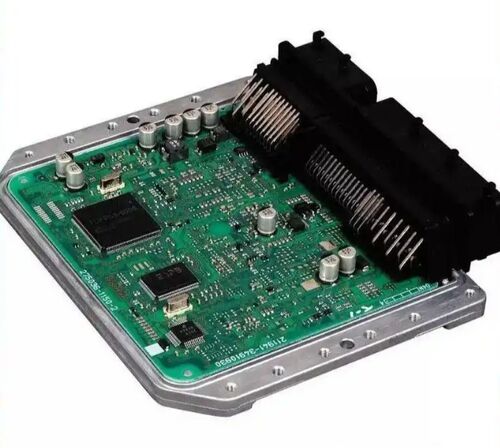

Enhancing Reliability of Automotive Engine Control Units (ECU) with DOWSIL™ CC-2588 Conformal Coating

Automotive under-hood electronics, such as Engine Control Units (ECUs) and transmission controllers, operate in extremely harsh environments characterized by high humidity, salt spray, thermal shock (-40°C to +150°C), and constant vibration. Without robust protection, PCBs are susceptible to corrosion, dendrite growth, and short circuits, leading to critical system failures.

DOWSIL™ CC-2588 is a one-part, solvent-borne silicone resin conformal coating designed for demanding applications. it offers a unique combination of properties:

• Room Temperature Rapid Cure: Achieves tack-free status in just 5 minutes at 25°C/50% RH, eliminating the need for energy-consuming ovens and accelerating production line throughput.
• High Solids & Abrasion Resistance: With 88% Non-Volatile Content (NVC), it achieves a durable 50-200 μm film in a single pass. Upon curing, it forms a tough, elastoplastic surface (Shore A 75) that resists scratching during handling and assembly.
• Excellent Electrical & Safety Properties: It features high dielectric strength (22.3 kV/mm), volume resistivity (2.4E15 Ohm·cm), and a UL 94V-0 flammability rating, meeting IPC-CC-830standards for reliable insulation.
• UV Indicator: Contains a UV tracer for easy automated inspection of coating coverage.

In a typical high-volume ECU manufacturing scenario, the PCB assemblies are first cleaned and dried. DOWSIL™ CC-2588 is applied using selective spray equipment to target specific areas while masking connectors. Thanks to its medium viscosity (930 cP), the material flows smoothly without excessive dripping. After a brief room temperature flash-off, the boards are ready for immediate packing or functional testing within an hour, as the coating cures fully via ambient moisture over 24-72 hours.

• Improved Field Reliability: The tough, moisture-impermeable silicone layer effectively prevented corrosion on solder joints and copper traces during salt spray and high-humidity chamber testing.
• Production Efficiency: Eliminating the oven curing step saved floor space and reduced energy costs by approximately 15% compared to previous acrylic coating processes.
• Quality Assurance: The integrated UV indicator allowed the QA team to quickly verify 100% coverage under blacklight, ensuring no bare spots were left on critical components.

DOWSIL™ CC-2588 provides an optimal balance of mechanical protection, electrical insulation, and process efficiency. It is an ideal solution for automotive electronics, industrial controls, and appliance PCBs requiring long-term reliability in harsh environments.
