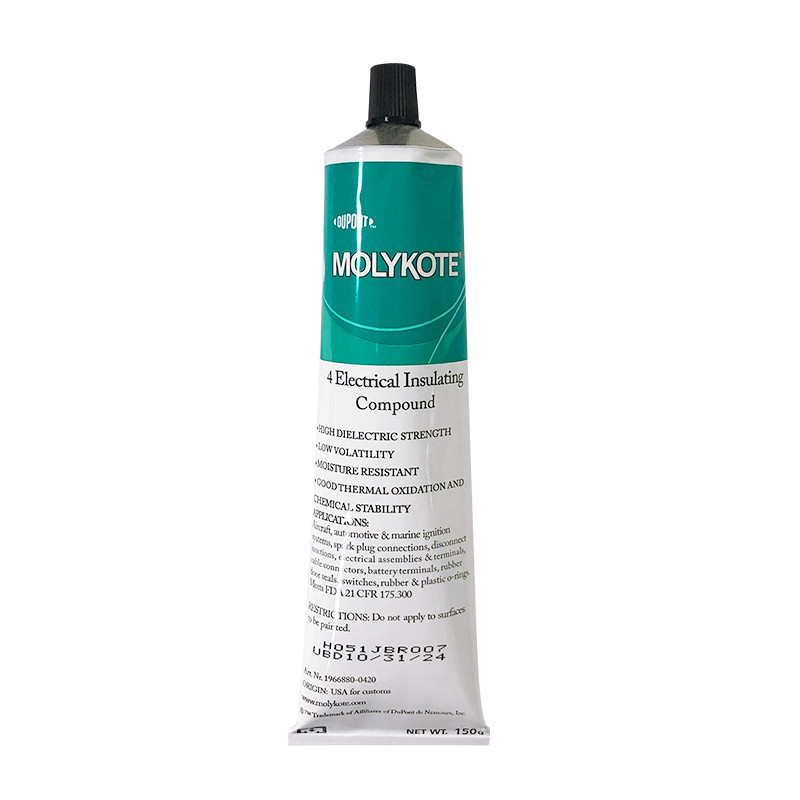

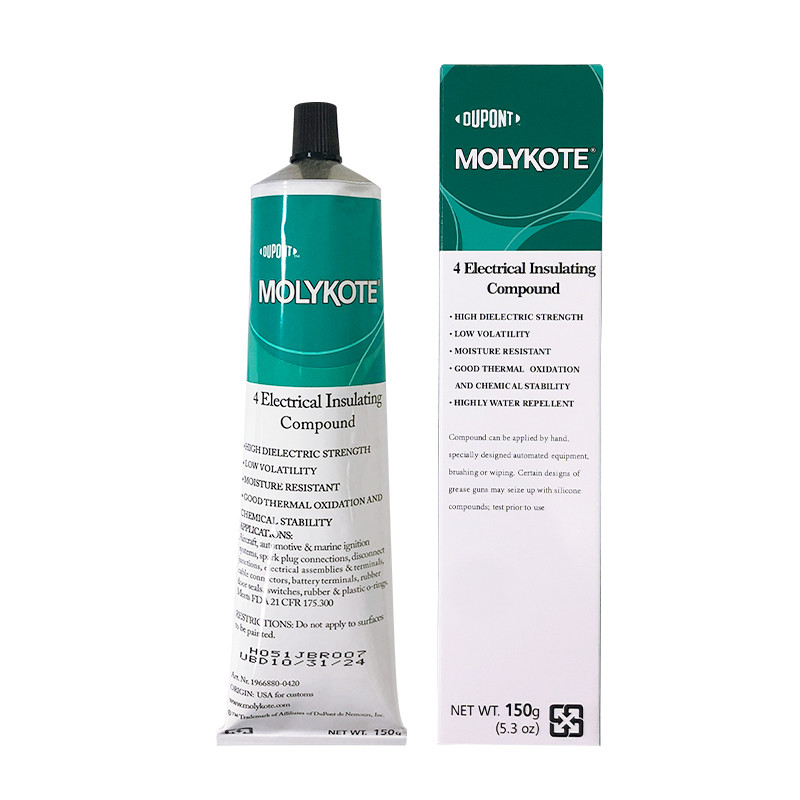

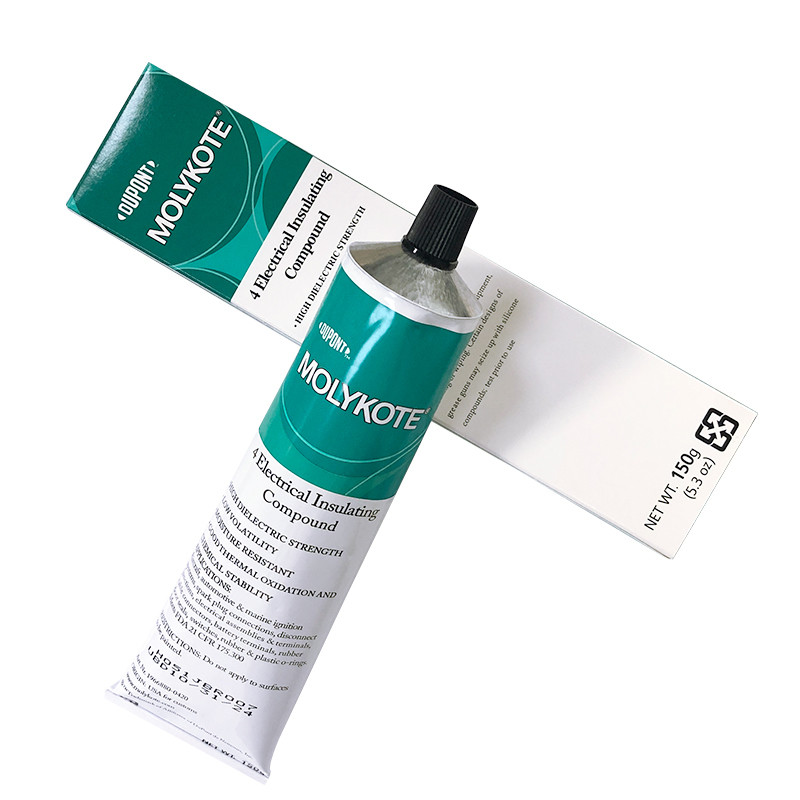

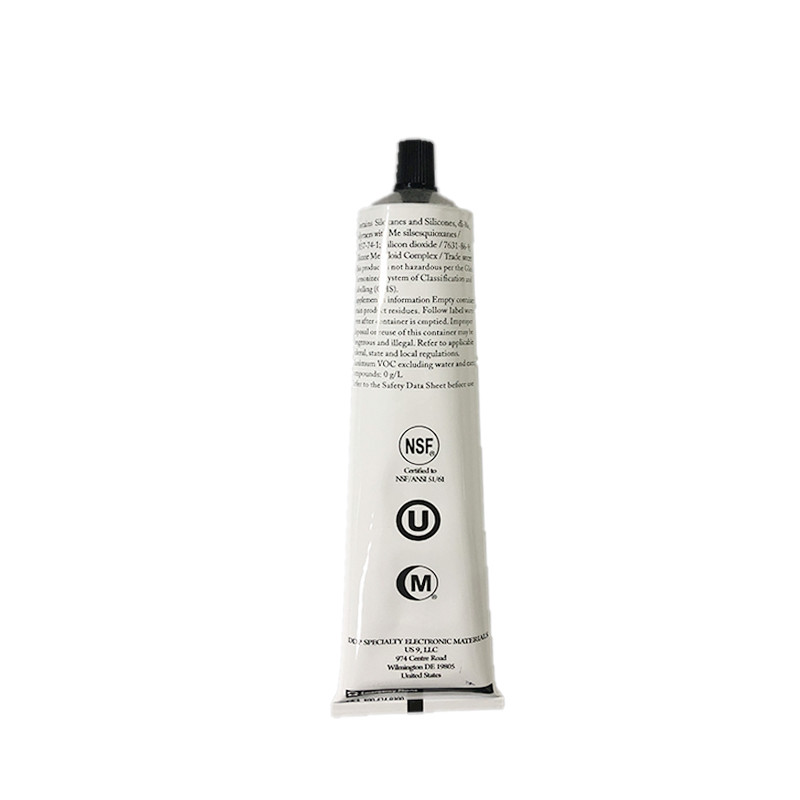

Molykote 4 Electrical Insulating Compound With Inert Silica Filler
Product Properties
Molykote 4 is an electrical insulating compound with inert silica filler in polydimethyl silicone fluids, appearing as a white translucent grease (NLGI Grade 2). Key features include high dielectric strength (460 V/mil), stability from -40°C to 200°C, low volatility, and moisture resistance, complying with SAE AS 8660 and FDA 21 CFR 175.300 standards.
| Standard |
Test Property |
Unit |
Result |
| CTM 0176 |
Color |
- |
White; translucent |
| CTM 0191 |
NLGI consistency number |
- |
2 |
| - |
Penetration unworked |
mm/10 |
220 |
| - |
Penetration worked 60, max |
mm/10 |
310 |
| CTM 0033A |
Evaporation (30h/200°C) |
% max |
2.0 |
| - |
Service temperature range |
°C / °F |
-40 to 200 / -40 to 392 |
| CTM 0022 |
Density at 25°C |
g/ml |
1.0 |
Electrical Properties
| Standard |
Test Property |
Unit |
Result |
| CTM 0114 |
Dielectric strength (1.27mm gap) |
V/mil |
460 |
| CTM 0112 |
Dielectric constant @100 Hz |
- |
2.98 |
| CTM 0112 |
Dissipation factor @100 Hz |
- |
<0.0001 |
| CTM 0249 |
Volume resistivity @23°C |
Ohm*cm |
1.1×10¹⁵ |
| CTM 0171 |
Arc resistance |
seconds |
135 |
Product Introduction
Engineered for electrical insulation and sealing with lubrication capabilities, Molykote® 4 utilizes a silica-enhanced formula to deliver exceptional dielectric properties (dielectric constant 2.98@100Hz) and volume resistivity (1.1×10¹⁵ Ω*cm). Certified to NSF 51/61 for food contact, it resists water/methanol/mineral oil but disperses in xylene/mineral spirits for spray/dip applications.
Enhanced Properties
Beyond insulation, Molykote 4 exhibits ultra-low dissipation factor (<0.0001@100Hz) and 135-second arc resistance. Its chemical stability withstands dilute acids/alkalis/oils, while thermal oxidation stability limits evaporation to ≤2.0% at 200°C (30hrs). Note: It degrades silicone rubber and is incompatible with liquid oxygen.
Application Scenarios
Widely used for moisture-proof sealing in aviation/automotive ignition systems, spark plugs, and cable connectors (e.g., Delphi high-voltage connectors). As an assembly lubricant, it suits metal-plastic/rubber components (e.g., door seals, O-rings). Industry-proven cases include Tesla battery terminal anti-corrosion and marine electrical box waterproofing (Source: Molykote® official application database).
