Araldite AY 103-1 / Hardener HY 991: Multi-Industry Application Cases of a Classic Low-Viscosity Epoxy Adhesive System

Case 1: Precision Bonding in Large-Scale Particle Detectors

Background

In the ATLAS experiment at CERN, the TRT (Transition Radiation Tracker) group needed a high-performance adhesive for detector assemblies. The application demanded exceptionally low outgassing (to avoid contaminating the detector's internal gas environment), good electrical insulation properties, and reliable mechanical strength. After evaluating multiple adhesive candidates, the team selected Araldite® AY 103-1 / Hardener HY 991-3.

Challenge & Solution

The adhesive system's core advantages lie in its excellent outgassing performance and stable electrical and mechanical properties. The ATLAS TRT group had discarded AW 106 in 1998 due to excessive surface conductivity, and after several rounds of testing confirmed that AY 103-1 / HY 991 could meet the long-term reliability requirements for detector components-3.

The mixed system has a viscosity of 4–6 Pa·s, providing excellent flow and penetration characteristics that allow it to uniformly fill minute gaps within precision detector assemblies-3. For large-area bonding, the low-viscosity nature enables the adhesive to self-level, forming a uniform bond line without additional pressure.

Key Performance Data

This product also holds Airbus ABR 2-0185 certification, providing a mature compliance foundation for aerospace applications-.

Case 2: Steel Structure Pre-Stressing Bond Research

Background

In a research project on pre-stressing (energising) of structural materials, researchers used Araldite® AY 103-1 / Hardener HY 991 as the bonding agent for a systematic study of the mechanical performance of cylindrical steel-to-steel interfaces. The study, published by R. W. Hylands in 1984, is a classic reference for evaluating this adhesive's performance in structural engineering applications-1.

Test Methodology & Findings

The research team designed concentrically constructed compression and tension joints, systematically investigating the effects of 9 glue line thicknesses (0.0254 mm to 2.54 mm) and 5 bond lengths (12.7 mm to 63.5 mm) on joint strength. Each parameter combination was tested five times-1.

Key findings:

• Thinner glue lines yield higher bond strength. The strongest joints were obtained with the thinnest glue lines, and increasing the thickness to 1.524 mm diminished strength by approximately 32% for both compression and tension specimens-1.

• For glue line thicknesses from 1.524 mm to 2.54 mm, the joint strength remained almost constant-1.

• The coefficient of variation for joint strength ranged from 6.89% to 13.41%, indicating good batch consistency-1.

These findings align perfectly with the TDS recommendation of 0.05–0.10 mm bond line thickness for maximum lap shear strength.

Case 3: Cultural Heritage Restoration & Conservation

Background

Araldite® AY 103-1 has also been applied in cultural heritage conservation. In a study on bonding granite cultural heritage, researchers evaluated the effectiveness, harmful effects, and reversibility of Araldite® AY 103-1 as a structural adhesive for stone restoration-.

Application Highlights

Research showed that adding micronized silica to Araldite® AY 103-1 significantly increased the adhesive's shear strength, making it more suitable for stone bonding scenarios subject to higher stresses-. The study also examined the use of Paraloid B-72 as an intervention layer to ensure reversibility, in compliance with conservation principles-.

The adhesive's low viscosity allows it to penetrate into the micro-pores of stone, forming deep anchoring, while its room-temperature curing avoids the risk of thermal damage to artifacts.

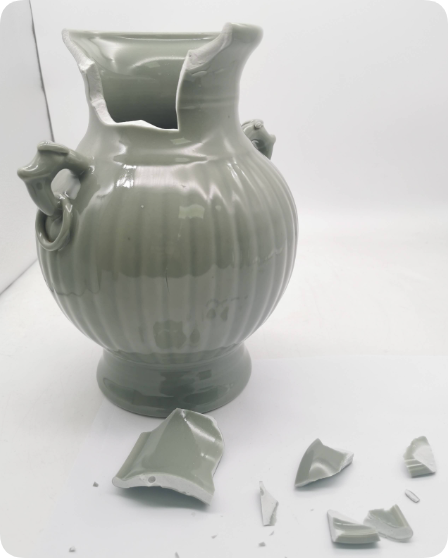

Furthermore, Araldite® AY 103-1 has been studied for ceramic artifact restoration. Related experiments used Differential Scanning Calorimetry (DSC) to analyze the glass transition temperature and evaluate degradation characteristics under accelerated aging conditions, providing data to support long-term stability assessment of restoration materials-.

Case 4: Industrial Electronics & Aerospace Maintenance

Application Scenarios

Araldite® AY 103-1 / Hardener HY 991 has a broad application base in aerospace and industrial electronics. The system is used in aircraft repair, industrial composites, tooling and assembly, among other applications-11.

In electronics, its low viscosity makes it particularly suitable for precision component dispensing, enabling automated application and improved production efficiency-16. In aircraft repair, the adhesive can be used for bonding and repairing metal skins and composite structural components.

Durability Data

Aging test data from the TDS demonstrates the product's long-term reliability:

Additionally, after 90-day immersion in various chemical media (IMS, gasoline, ethyl acetate, 10% acetic acid, xylene, lubricating oil, paraffin, etc.), the adhesive maintained usable bond strength, with particularly outstanding performance in lubricating oil and paraffin.

Product Advantages Summary

The broad application of Araldite® AY 103-1 / Hardener HY 991—from particle physics detectors to cultural heritage restoration, from steel structure engineering to aerospace maintenance—stems from its core advantages:

1. Low viscosity, easy application: Mixed viscosity of only 4–6 Pa·s, self-leveling, ideal for large-area coating and precision dispensing

2. Multi-substrate compatibility: Excellent bond strength to metals, ceramics, glass, rubbers, rigid plastics, and more

3. Room-temperature curing: No heating equipment required, simple operation, with a 200–400 minute pot life providing ample working time

4. Outstanding durability: Verified through tropical weathering, heat aging, chemical immersion, and thermal cycling tests

5. Compliance certification: Compliant with Airbus ABR 2-0185, suitable for aerospace applications

6. Solvent-free formulation: No VOC release during curing, suitable for outgassing-sensitive applications
