Basic Properties
| Property |
Unit |
Value |
Test Condition |
| Viscosity |
mPa·s |
550 |
23°C |
| Tack-Free Time |
min |
5 |
23°C, 50% RH, 100μm thickness |
| Cure Time (Room Temp) |
min |
30 |
23°C, 50% RH, 100μm thickness |
| Cure Time (Oven) |
min |
2 |
60°C, 15% RH, 100μm thickness |
| Hardness |
Shore A |
22 |
Cured 3 days at 23°C/50% RH |
| Volume Resistivity |
MΩ·cm |
1×10⁷ |
Cured 3 days at 23°C/50% RH |
| Dielectric Constant |
- |
2.60 |
60Hz, cured 3 days at 23°C/50% RH |
| Low Molecular Siloxane |
wt% |
0.01 |
D4-D10 content |
Product Overview

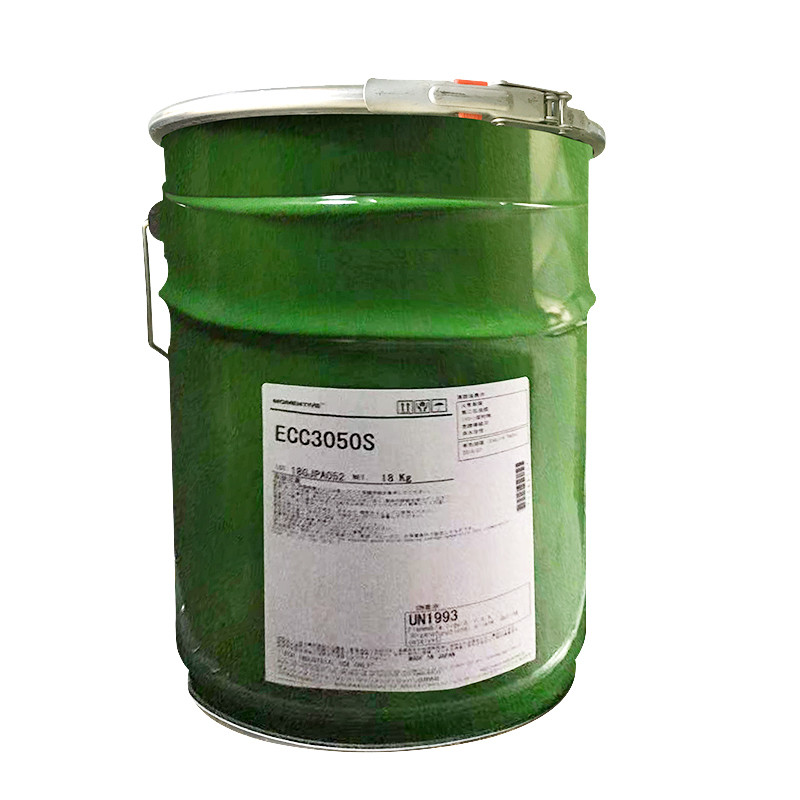

ECC3050S is a low-viscosity, solventless silicone conformal coating that cures rapidly at room temperature to a soft, transparent rubber. It offers efficient protection for printed circuit board assemblies (PCBA) with tack-free time as short as 5 minutes. Optimized for spray or flow coating, its oven cure capability (≤60°C) reduces handling time to 2 minutes, making it ideal for high-volume production with temperature-limited components.
Key Advanced Features
- Flame Retardancy: UL94V-0 certified (File No. E135148) to suppress flame propagation during electrical faults.
- Low Stress: Low modulus (22 Shore A) minimizes CTE stress on sensitive components during thermal cycling.
- Moisture Resistance: Superior adhesion ensures long-term humidity protection with ultra-low siloxane content (0.01 wt%) to prevent electrochemical migration.
Applications
- Protects BGA chips and microprocessors in automotive ECUs against vibration, condensation, and chemicals per ISO 16750-4.
- Ensures signal stability for MEMS sensor solder joints in harsh environments (85°C/85% RH).
- Prevents arcing in high-voltage LED drivers while maintaining thermal management capability.
