Home /Products/Shinetsu Silicone/ShinEtsu KE-1285 UL 94 V-0 Thermal Conductive Heat-Cure Electronic Potting Encapsulant Two-Part Silicone

ShinEtsu KE-1285 UL 94 V-0 Thermal Conductive Heat-Cure Electronic Potting Encapsulant Two-Part Silicone

1
MOQ
2915
Price
ShinEtsu KE-1285 UL 94 V-0 Thermal Conductive Heat-Cure Electronic Potting Encapsulant Two-Part Silicone
Features Gallery Product Description Chat Now
Features
Specifications
Brand: ShinEtsu
Model: KE-1285
Specifications: 2kg/set
Category: Potting Glue
Color: Gray
Density @ 23C (g/cm3): 1.72
Viscosity A (cps): 9000.00
Highlight:

UL 94 V-0 Electronic Potting Encapsulant

,

Thermal Conductive Two-Part Silicone

,

Heat-Cure Potting Glue
Basic Infomation
Place of Origin: Japan
Brand Name: ShinEtsu
Certification: TDS,SDS,Rohs,COA
Model Number: KE-1285
Payment & Shipping Terms
Packaging Details: 2KG/set
Delivery Time: 3-5
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000
Product Description

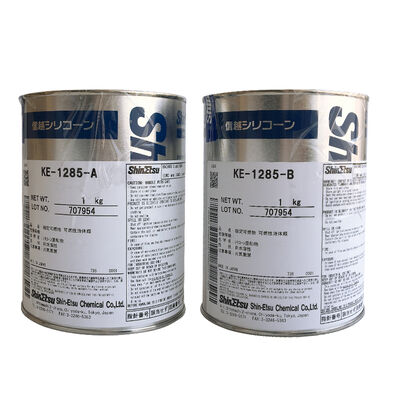

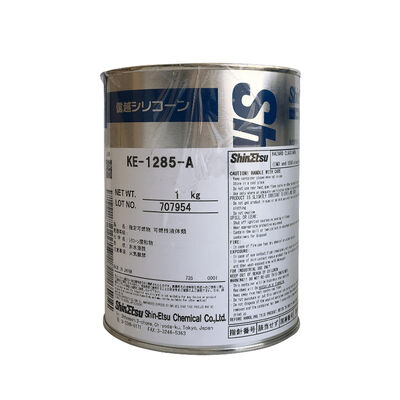

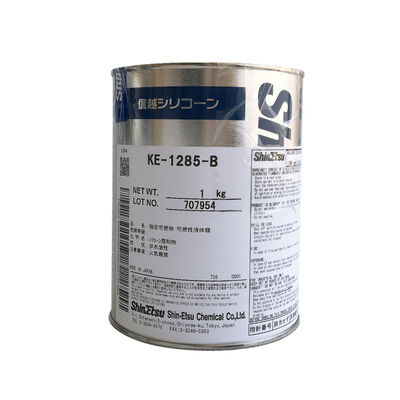

ShinEtsu KE-1285 A/B Electronic Potting Encapsulant
UL V-0 Thermal Conductive Two-Part Silicone for advanced electronic protection and insulation applications.
Product Overview
ShinEtsu KE-1285 A/B is a gray two-part heat-cure self-leveling potting encapsulant that cures to form a durable, flexible rubber elastomer. This thermal conductive silicone features excellent electrical insulation properties and UL 94 V-0 flammability rating, making it ideal for demanding electronic applications.
Technical Specifications
Product Type Potting Encapsulant
Cure Type Addition (Heat Cure)
Components Two (A/B)
UL 94 Rating V-0
Color Gray
Density @ 23°C 1.72 g/cm³
Viscosity (Part A) 9000 cP
Mix Ratio (by weight) 100:100
Cure Conditions 1hr @ 120°C
Working Time 15 Hours
Shore A Hardness 56
Tensile Strength 2.80 MPa
Elongation 140%
Shear Strength 1.50 MPa
Volume Resistivity 6.5 TΩ·m
Dielectric Strength 26 kV/mm
Dielectric Constant @ 50Hz 4.0
Dielectric Dissipation Factor @ 50Hz 1×10⁻²
Thermal Conductivity 0.80 W/m·K
Usable Temperature Range -40°C to +180°C
Performance Characteristics
KE-1285 A/B delivers exceptional electrical insulation with volume resistivity of 6.5 TΩ·m and dielectric strength of 26 kV/mm. The material provides excellent unprimed adhesion to PCBs, metals, plastics, glass, and ceramics, ensuring reliable protection in diverse applications.
Application Scenarios
Designed for protecting and electrically isolating electronic components, this encapsulant is widely used in power modules, automotive ECUs, and industrial controllers requiring thermal conduction, flame resistance, and environmental protection.
Product Demonstration
ShinEtsu KE-1285 UL 94 V-0 Thermal Conductive Heat-Cure Electronic Potting Encapsulant Two-Part Silicone 0
About Our Company
Shenzhen Huazhisheng New Material Technology Co., Ltd. is a professional industrial adhesives and sealants supplier serving global markets since 2018.
Market Distribution
Mainland China (60%), Southeast Asia (20%), North America (10%), and Europe (10%).
Quality Assurance
Our comprehensive quality control includes mandatory pre-production sample approval, final inspection before shipment, and international certifications: SGS, UL, FDA, RoHS, REACH.
Competitive Advantages
  • Reliable Supply: Authentic products from top manufacturers
  • Expert Support: Technical guidance for optimal product selection
  • Global Compliance: Certifications meeting target market standards
  • Efficient Service: Customized solutions & professional support
Service Offerings
Delivery: EXW/FOB/CIF | Payment: USD/EUR/CNY/HKD via T/T, L/C | Support: Technical consultation & logistics coordination
