Application Case of Dowsil™ 3140 RTV Coating in Consumer Electronics Sensor Module Protection

With the high integration and miniaturization of smart devices, various internal sensors (such as temperature and humidity sensors, gas sensors, pressure sensors) face threats like condensation, dust, and chemical corrosion in complex and variable environments. Dowsil™ 3140 RTV Coating, as a one-part, room temperature cure, high-flowability, clear silicone coating, provides a thin and reliable protective layer for precision electronic components, making it an ideal choice for such applications. This case study details its successful application on a sensor module for a smart home environmental monitoring device.

Dowsil™ 3140 is a one-part, clear to slightly hazy Room Temperature Vulcanizing (RTV) silicone coating. It requires no mixing, is ready to use, and cures by absorbing moisture from the air to form a flexible elastomer. Its core advantages lie in excellent processing simplicity, comprehensive protective performance, and reliable industry certifications.

Main features include:

1. Outstanding Processing Simplicity:
   • One-part, no mixing required: Ready to use, eliminating potential mixing ratio errors and waste associated with two-part materials, simplifying the production process.
   • Room temperature cure: Cures at room temperature (25°C) and 30-80% relative humidity, eliminating the need for heating ovens, saving energy and equipment investment.
   • Good flowability: Moderate viscosity (34,400 cP) with good flow and self-leveling characteristics, allowing it to easily cover complex components, pins, and solder joints on printed circuit boards (PCBs), forming a uniform protective coating that reduces bubbles and voids.
   • Optional heat acceleration: To speed up the production line cycle, mild heating below 60°C can be used to accelerate the curing process, improving production efficiency.
2. Reliable Protection and Electrical Performance:
   • Comprehensive environmental protection: The cured flexible silicone rubber coating effectively blocks moisture, dust, mold, and most chemical atmospheres, preventing circuit corrosion and short circuits, especially suitable for corrosion-sensitive components.
   • Excellent electrical insulation: High volume resistivity (2.1 x 10¹⁴ ohm*cm) and high dielectric strength (385 volts/mil or 15 kV/mm) provide reliable insulation protection for high-voltage or high-density circuits, preventing tracking.
   • Mechanical stress buffering: Cured Shore A hardness is 31.6, with an elongation as high as 419%, making it a very soft and elastic material. It effectively absorbs and disperses vibration and thermal expansion/contraction stress generated during device operation or transportation, protecting delicate solder joints and micro-components.
3. Industry Standard Certifications and Additional Features:
   • Industry compliance: UL 94 V-1 flame classification certified, meeting basic safety requirements for consumer electronics. Also compliant with IPC-CC-830B, MIL-I-46058C, and MIL-A-46146 standards, suitable for commercial and industrial applications with strict reliability requirements.
   • Ultraviolet (UV) indicator: The product contains a UV indicator that fluoresces under UV light, facilitating quick and accurate inspection of coating coverage completeness and uniformity during manual or automated optical inspection (AOI), ensuring no missed spots and enhancing production quality control.

Smart home environmental monitoring devices (such as air quality monitors, smart thermohygrometers) typically integrate various precision sensor chips. These sensors need to be directly exposed to ambient air for measurement, yet the internal circuits must be protected from damage caused by high humidity (e.g., bathroom environments), condensation, or trace corrosive gases in the air (e.g., kitchen fumes, cleaning agent volatiles). Traditional heavy potting or sealed housings may affect sensor response speed and accuracy, while the thin coating protection provided by Dowsil™ 3140 perfectly resolves this contradiction.

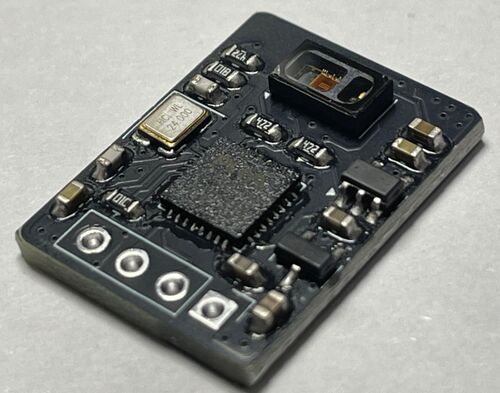

1. Selective Precision Coating: After the sensor module PCB is assembled, Dowsil™ 3140 is precisely dispensed or sprayed onto areas requiring protection, such as analog front-end circuits, microprocessors, resistors, and capacitors, using a dispensing needle or precision spraying equipment, while avoiding the sensitive sensing areas of the sensor elements themselves (e.g., the air inlet of a gas sensor, the open window of a temperature and humidity sensor). Its good flowability ensures the coating evenly covers pins and small component gaps, forming a seamless protective film.
2. Achieving Multiple Protections:
   • Moisture and condensation proof: In humid seasons or environments prone to condensation due to large temperature differences (e.g., moving from an air-conditioned room outdoors), the coating effectively prevents moisture from condensing on the PCB surface to form a water film, avoiding circuit shorts and electrochemical migration of metal traces, ensuring long-term stable sensor readings.
   • Protection against corrosive chemical gases: For devices monitoring kitchen air quality or placed in newly renovated rooms, the coating can block trace corrosive gases like hydrogen sulfide, sulfur dioxide, and formaldehyde in the air from corroding circuit copper traces and solder joints, extending module lifespan.
   • Electrical insulation and safety assurance: The coating's high insulation properties ensure safe isolation between low-voltage signal lines and potentially higher-voltage power or communication lines inside the module. The UL 94 V-1 certification supports the overall safety rating of the end product.
3. Optimizing Production and Ensuring Quality:
   • Improving production efficiency: The one-part, room temperature cure characteristics simplify the production process, eliminating the need for mixing and deaeration equipment or large curing ovens. The production line operation is simple and easy to learn. The tack-free time is approximately 116 minutes, providing ample time for operation and inspection.
   • Ensuring coating quality: The UV indicator function makes 100% online inspection possible. Under UV light, operators or AOI systems can instantly identify whether the coating completely covers the intended areas, if the coating thickness is uniform, and if there are any missed spots or overly thin areas, greatly enhancing process reliability and product consistency.
4. Thin and lightweight design, no impact on performance: The formed coating is thin and uniform, causing no significant impact on the response characteristics of sensor elements (e.g., hindering gas diffusion or heat transfer), while its soft texture imposes no mechanical stress on sensitive components, perfectly balancing the needs of "protection" and "sensing function."

In this case, Dowsil™ 3140 RTV Coating successfully provided critical protection for the sensor module of a smart environmental monitoring device. Its one-part, room temperature cure, and high flowability characteristics greatly simplified the production process and reduced equipment investment. The formed coating provides excellent moisture, corrosion, and electrical insulation protection while, due to its thin and soft nature, minimizes interference with the sensor's own performance. The built-in UV indicator function provides an intuitive and reliable inspection method for production quality. For applications requiring thin coating protection, such as consumer electronics, industrial control boards, and automotive electronic modules, Dowsil™ 3140 is an excellent protective solution that combines efficiency, reliability, and ease of use.
