ShinEtsu G-750 High Thermal Conductivity Silicone Grease for IGBT Thermal Interface with High Dielectric Strength

1
MOQ
2940
Price
ShinEtsu G-750 High Thermal Conductivity Silicone Grease for IGBT Thermal Interface with High Dielectric Strength
Features Gallery Product Description Chat Now
Features
Specifications
Brand: ShinEtsu
Model: G-750
Specifications: 1kg
Category: Silicone Grease
Specific Gravity (25°C): 2.77
Thermal Conductivity: 3.5 W/m·K
Use Temperature Range: -50 To +120 °C
Highlight:

3.5 W/m·K Thermal Conductivity Silicone Grease

,

High Dielectric Strength Thermal Interface Material

,

IGBT Thermal Interface Silicone Grease
Basic Infomation
Place of Origin: Japan
Brand Name: ShinEtsu
Certification: SDS,TDS,Rohs,COA
Model Number: G-750
Payment & Shipping Terms
Packaging Details: 1kg
Delivery Time: 3-5
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000
Product Description
ShinEtsu G-750 IGBT Thermal Interface High Thermal Conductivity Silicone Grease

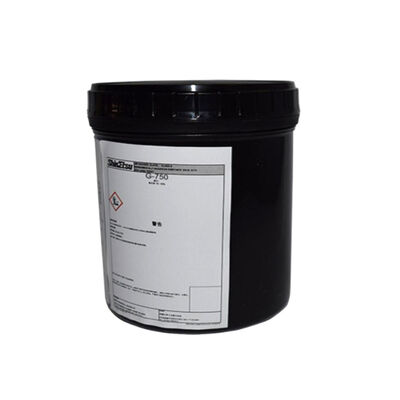

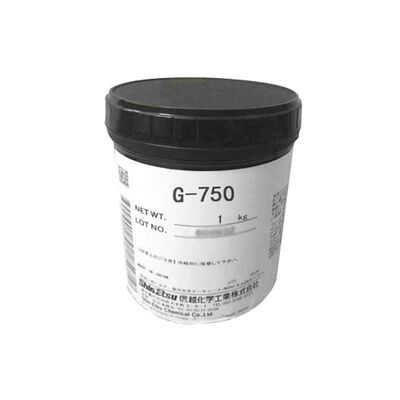

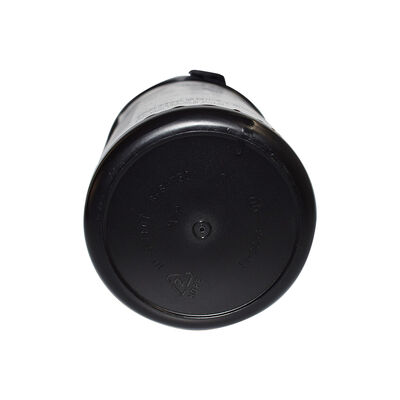

ShinEtsu G-750 is a gray silicone grease compound characterized by high thermal conductivity (3.5 W/m*K) and high dielectric strength. It has a specific gravity of 2.77 at 25°C.
Product Overview
This product is specifically designed as a thermal interface material for IGBTs (Insulated Gate Bipolar Transistors). It efficiently transfers heat away from semiconductor components while providing excellent electrical insulation, ensuring device stability and longevity.
Technical Specifications
Parameter Value/Condition Standard Method/Condition
Appearance Gray grease -
Specific Gravity (25°C) 2.77 -
Viscosity (25°C) 300 Pa*s -
Oil Separation (150°Cx24h) 0.01 % JIS K 2220 Test method
Thermal Conductivity 3.5 W/m*K -
Volume Resistivity 0.1 TΩ*m -
Dielectric Breakdown Strength (0.25mm) 4.5 kV -
Use Temperature Range -50 to +120 °C -
Volatile Content (150°Cx24h) 0.28 % -
Low MW Siloxane Content (∑D3-D10) ≤100 ppm -
Special Characteristics
G-750 maintains excellent stability under high temperatures, with minimal oil separation (0.01% at 150°C/24h) and a use temperature range of -50°C to +120°C. Its viscosity is 300 Pa*s at 25°C, indicating a thicker consistency suitable for specific application methods.
Application Scenarios
The primary application of Shin-Etsu G-750 is as a thermal interface material for IGBTs. IGBTs are critical components in power electronics systems such as industrial motor drives, renewable energy inverters (solar, wind), and electric vehicle powertrains. In these applications, G-750 is used between the IGBT module and the heatsink to minimize thermal resistance and manage the significant heat generated during operation. Publicly available information from component distributors confirms that G-750 is specified for thermal management in high-power IGBT modules.
Company Information & Services
Who are we?
We are Shenzhen Huazhisheng New Material Technology Co., Ltd., a professional industrial adhesives and sealants supplier based in China since 2018. We serve global markets: Mainland China (60%), Southeast Asia (20%), North America (10%), and Europe (10%).
What products do you offer?
We supply high-performance adhesives and sealants from global leaders including: Cemedine, Dow Corning, Shin-Etsu, Araldite, and Momentive, etc.
How do you guarantee product quality?
Quality assurance through: Mandatory pre-production samples approval, Final inspection by QC team before shipment, International certifications: SGS, UL, FDA, RoHS, REACH
Why choose us over other suppliers?
Reliable Supply: Authentic products from top manufacturers, Expert Support: Technical guidance for product selection, Global Compliance: Certifications meeting target market standards, Efficient Service: Customized solutions & professional support
What services do you provide?
Delivery: EXW/FOB/CIF, Payment: USD/EUR/CNY/HKD via T/T, L/C, Support: Technical consultation & logistics coordination
